Nickel 201 Wire Mesh/Screen

Nickel 201 Wire Mesh/Screen

Product Details:

Place of Origin: China
Brand Name: Changgu
Certification: ISO 9001
Model Number: Nickel 201 Wire Mesh/Screen

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Contact Now
Detailed Product Description

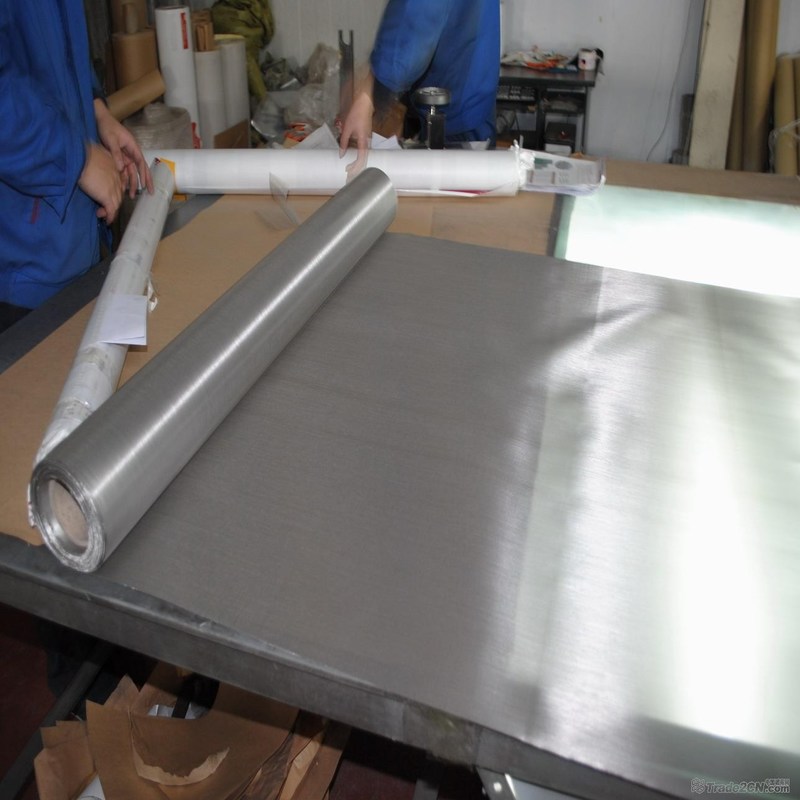

NICKEL 201 (N02201) WIRE MESH / SCREEN

Commercially pure wrought Nickel 201 has similar properties to Alloy 200 but with a lower carbon content to prevent embrittlement by inter-granular carbon at elevated temperatures.
Nickel 201 is the low carbon version of Nickel 200. It is preferred to Nickel 200 for applications involving exposure to temperatures above 600°F. With low base hardness and lower work-hardening rate, it is particularly suited for cold forming.
To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.

Chemical Composition(%) of Nickel 201 Wire Mesh:
  Ni Mn C Si Fe Cu S
Max   0.35 0.02 0.35 0.40 0.25 0.01
Min 99.0

Physical Properties of Nickel 201 Wire Mesh:
Density 8.9 g/cm3
Specific Heat 440 J/kg K
Electrical Resistivity 8.5 micro ohms cm
Curie Temperature 358℃
Melting Range 1435-1445℃
Thermal Expansion (106K) 14.3 (20-300℃)

Mechanical Properties of Nickel 201 Wire Mesh:
Ultimate Tensile ≥50KSi (≥345MPa)
Yield Strength (0.2% OS) ≥10KSi (≥70MPa)
Elong ≥40

Applications of Nickel 201 Wire Mesh:
1. Manufacture and handling of sodium hydroxide, particularly at temperature above 300C.
2. Production of viscose rayon. Manufacture of soap.
3. Alanine hydrochloride production and in the chlorination of aliphatic hydrocarbons such as benzene, methane and ethane.
4. Manufacture of vinyl chloride monomer.
5. Reactors and vessels in which fluorine is generated and reacted with hydrocarbons.

Product Description of Nickel 201 Wire Mesh:
       The product produced by us is of good quality and is priced reasonably.
Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.
Manufacture Process of Nickel 201 Wire Mesh:
Nickel 201 can be hot formed to almost any shape. The temperature range 1200°F to 2250°F is recommended and should be carefully abided as the proper temperature is the most important factor in achieving hot malleability.
Nickel 201 can be cold formed by all conventional methods, but because nickel alloys have greater stiffness than stainless steels more power is required to perform the operations.
High Temperature Mechanical Properties of Annealed Nickel 201
Temp.°F
Tensile Strength. PSI
Yield Strength. PSI
Elongation.%
Reduction of Area. %
Room
58.500
15.000
50
73
200
56.100
15.400
45
74
400
54.000
14.800
44
72
600
52.500
15.300
42
72
800
41.200
13.500
58
80
1000
33.100
12.100
60
84
1200
22.200
10.200
74
90


Our talented team of experienced wire mesh technicians and engineers employ the latest technologies to produce quality wire mesh and its processed articles.



Expanded Mesh
Perforated Mesh
Twill Weave mesh
Dutch Twill Weave Cloth
Dutch Weave Mesh
Reverse Dutch Weave Cloth
5-heddle Weave Mesh
Cross twill weave
Plain Weaving Mesh


Packing Process & Transportation of Nickel 201 Wire Mesh:
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation:     By air:   Beijing International Airport OR  By sea:Trianjin Seaport

We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
