Monel 404 Wire Mesh/Screen

Very good wire mesh material suppliers! We ordered Fence, Stainless steel wire mesh and copper mesh for many years, very good

—— Laurence

I'm Online Chat Now

Monel 404 Wire Mesh/Screen

China Monel 404 Wire Mesh/Screen supplier

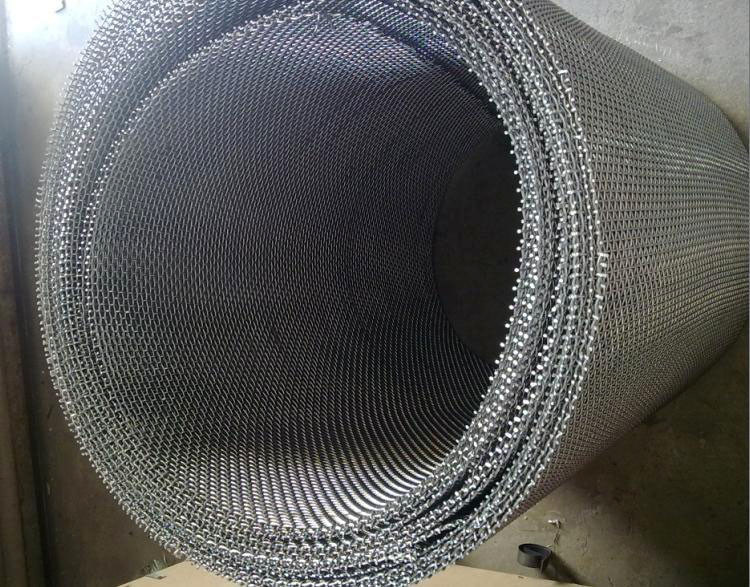

Large Image :  Monel 404 Wire Mesh/Screen

Product Details:

Place of Origin: China
Brand Name: Changgu
Certification: ISO 9001
Model Number: Monel 404 Wire Mesh/Screen

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Detailed Product Description
Application: Screen



  MONEL    404 WIRE MESH/ SCREEN

Monel (nickel-copper alloy) 404 Wire Mesh/Screen is used primarily in specialized electrical and electronic applications. The composition of monel alloy 404 Wire Mesh/Screen is carefully adjusted to provide a very low Curie temperature, low permeability, and good brazing characteristics.


To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.

Chemical Composition, % of Monel 404 Wire Mesh/Screen:
Nickel
(plus Cobalt)
Carbon.
Manganese
Iron
Sulfur
Silicon
Copper.
Aluminum
52.0-57.0
0.15max.
0.10max.
0.50max
0.024max.
0.10max
Balance
0.05max



Physical Properties of Monel 404 Wire Mesh/Screen:

Density, lb/in.3
0.322
g/cm3
8.91
Specific Heat, Btu/lb•°F, at 70°F
0.099
J/kg•°C
414
Thermal Expansion, in./in./°x10-6

70°-200°F(21-93°C)
7.4
70°-500°F(21-260°C)
8.5
70°-1000°F(21-539°C)
9.2
70°-1500°F(21-816°C)
9.8
Thermal Conductivity, Btu •in/ft2•h•°F
133
W/m•°C
21.0
Electrical Resistivity, ohm•circmil/ft, at 70°F
294
μΩ•m 0.498

Mechanical Properties of Monel 404 Wire Mesh/Screen:
Properties
Conditions
T (°C)
Treatment
Density (×1000 kg/m3)
7.7-8.03
25

Poisson's Ratio
0.27-0.30
25

Elastic Modulus (GPa)
190-210
25

Tensile Strength (Mpa)
1158
25
oil quenched, fine grained, tempered at 425°C
Yield Strength (Mpa)
1034
Elongation (%)
15
Reduction in Area (%)
53
Hardness (HB)
335
25
oil quenched, fine grained, tempered at 425°C


Mesh's Woven Method
Expanded Mesh
Perforated Mesh
Twill Weave mesh
Dutch Twill Weave Cloth
Dutch Plain Weave
Dutch Weave Mesh
Reverse Dutch Weave Cloth
5-heddle Weave Mesh
Cross twill weave
Plain Weaving Mesh

Product Description: The product produced by us is of good quality and is priced reasonably.
         Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
        High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.

Packing Process & Transportation:
       Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
        Transportation:     By air:   Beijing International Airport    OR        By sea:   Trianjin Seaport

We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
