Anping Jiechang Wire Mesh Products Co.,LTD Factory Tour

Very good wire mesh material suppliers! We ordered Fence, Stainless steel wire mesh and copper mesh for many years, very good

—— Laurence

I'm Online Chat Now
1 2 3 4 5 6 7 8
workshop galvanized wire export load containers container load wire mesh wire mesh wire mesh
workshop
galvanized wire export
load
containers
container
load wire mesh
wire mesh
wire mesh

workshop

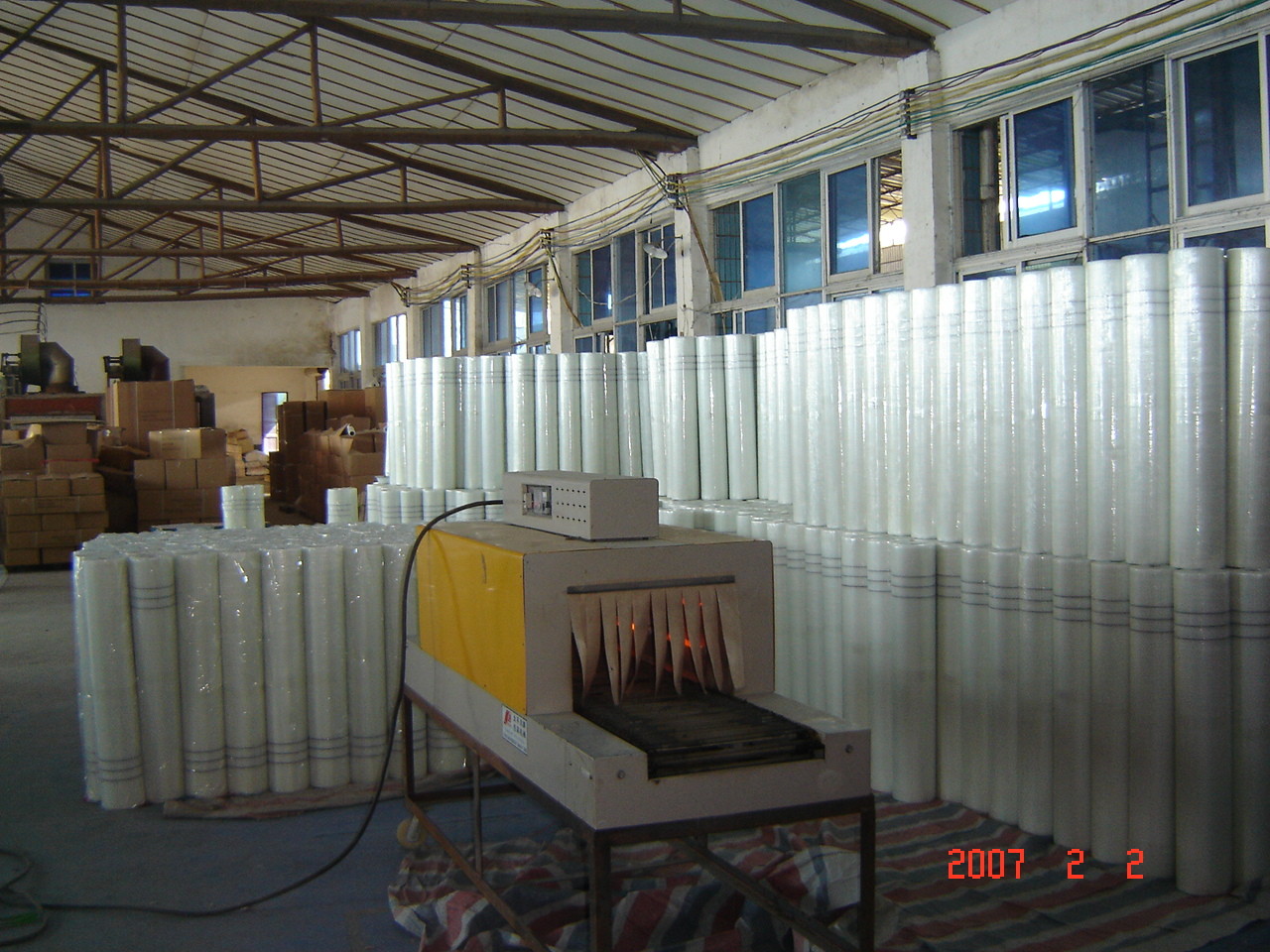

fiberglass mesh

galvanized wire export

galvanized wire

load

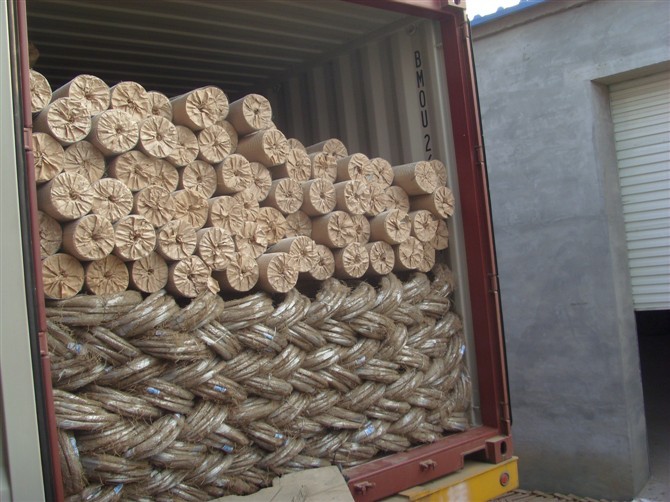

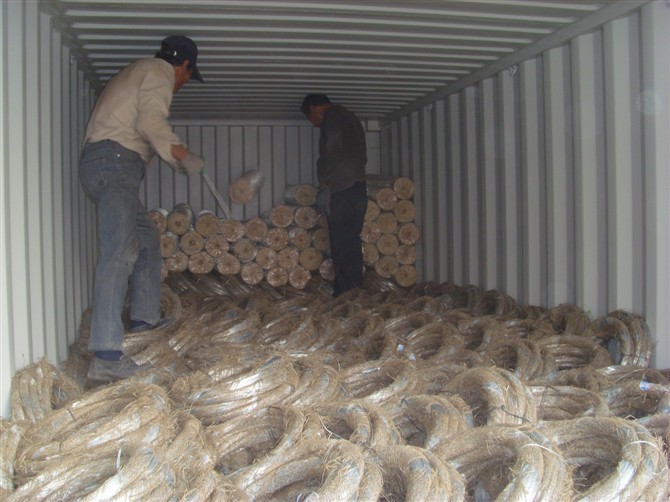

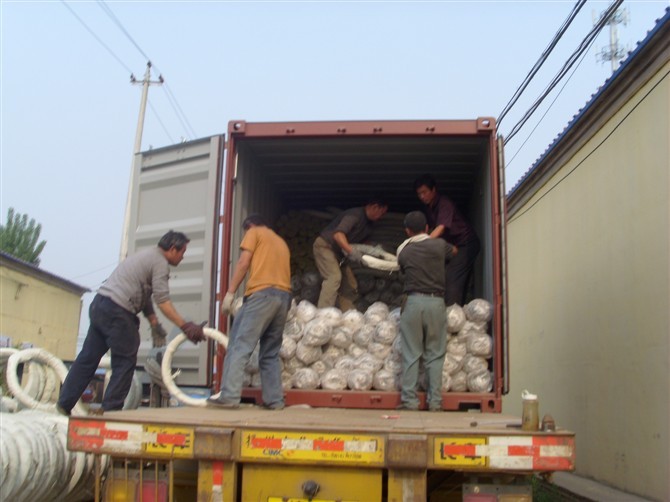

load galvanized wire, wire mesh to container

containers

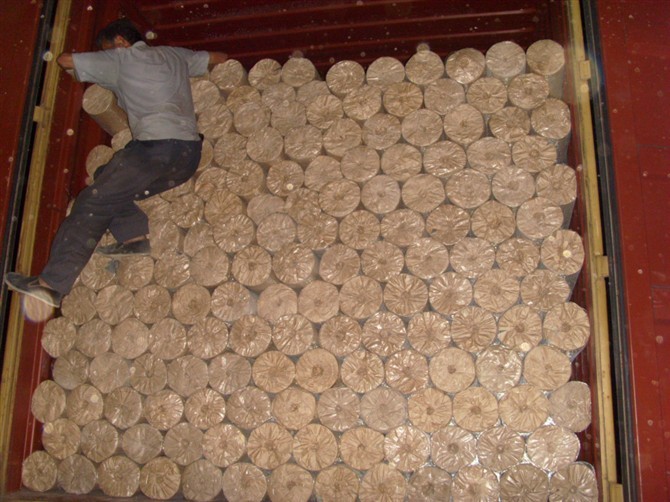

load to container

container

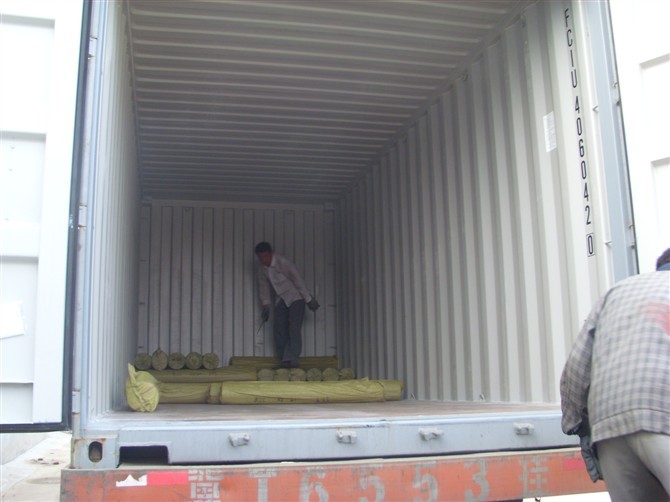

load into container

load wire mesh

wire mesh

wire mesh

wire mesh

wire mesh

wire mesh

1 2 3 4 5
wire mesh load wire mesh load wire mesh load wire mesh load load
wire mesh load
wire mesh load
wire mesh load
wire mesh load
load

wire mesh load

wire mesh load

wire mesh load

wire mesh load

wire mesh load

wire mesh load

wire mesh load

wire mesh load

load

wire mesh load

1 2 3 4 5
wire mesh stock wire mesh stock machine wire mesh load load

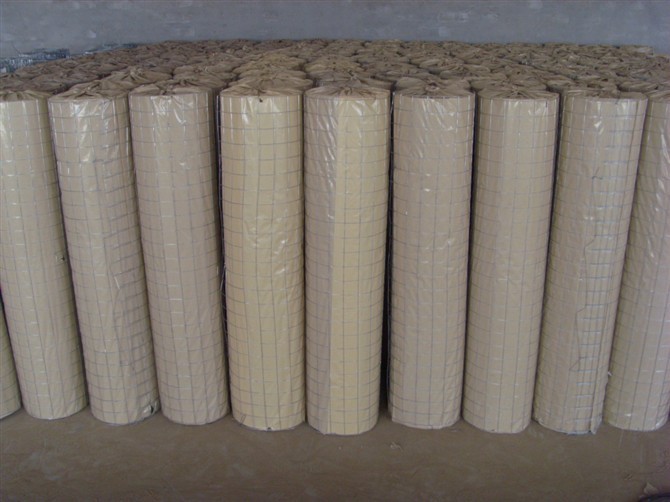

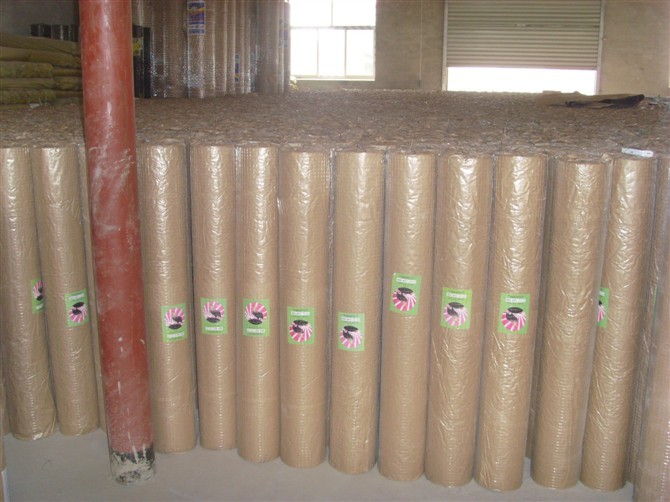

wire mesh stock
wire mesh stock

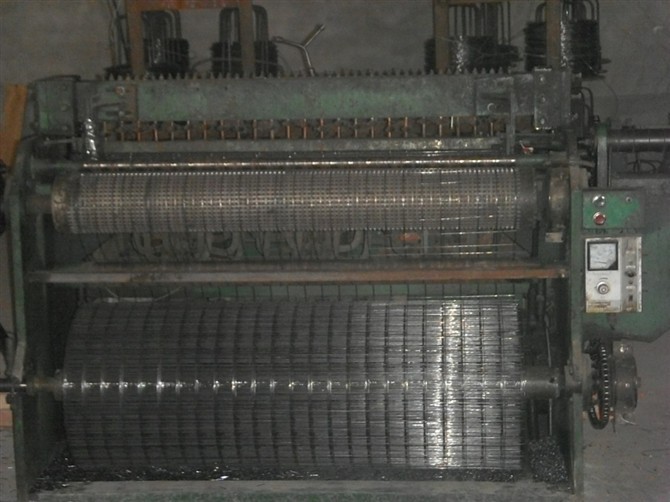

machine
wire mesh load
load

wire mesh stock

wire mesh stock

wire mesh stock

wire mesh stock

machine

machine

wire mesh load

wire mesh load

load

wire mesh load

  • Production Line



    The main parameter of the galvanized wire mesh production line :

    Model

    Wire(mm)

    Width

    Warp Spacing

    Weft spacing

    Welding Speed

    DNW455-7'-1/4"-B

    Φ0.3-1.2

    1'-7'

    1/4"-1"

    1/4"-1"

    0-120times/min

    DNW350-7'-1/3"-S

    Φ0.4-1.6

    1'-7'

    1/3"-2"

    1/3"-2"

    0-140 times/min

    DNW350-7'-3/8"-S

    Φ0.4-1.8

    1'-7'

    3/8"-3"

    3/8"-3"

    0-140 times/min

    DNW455-7'-1/2"-S

    Φ0.4-2.5

    1'-7'

    1/2"-4"

    1/2"-4"

    0-140 times/min

    DNW441-2100-25

    Φ1-4

    1000-2100mm

    25-300mm

    25-300mm

    105 times/min

    DNW585-2600-50

    Φ3-6

    1000-2600mm

    50-300mm

    ≥10mm

    105 times/min

    DNW1800-3300-50

    Φ5-12

    1000-3300mm

    50-300mm

    ≥25mm

    110 times/min



    Stainless steel wire mesh production line

    Type

    DP-DNW-1

    Wire diameter

    0.4-0.65mm

    Aperture/pitch

    6.35-12.7mm(1/4”-1/2”)

    Mesh width

    914.4mm;1000mm



    Type

    DP-DNW-2

    Wire diameter

    0.65-1.8mm

    Aperture/pitch

    12.7-101.6mm(1/2”-4”)

    Mesh width

    1219.2mm;1524mm (4 feet;5 feet)



    Type

    DP-DNW-3

    Wire diameter

    1.0-2.2mm

    Aperture/pitch

    25.4-101.6mm(1”-4”))

    Mesh width

    1219.2mm;1524mm;1828.8mm;2133.6mm(4 feet;5 feet;6 feet;7feet)







    Wire mesh fence welding machine production line



    diameter 5.0-12.0(mm)
    Welding mesh size 100X100-300X300(mm)
    Welding width 2500(mm)



    Main Usage:Welding fence meshes for railway, highway, maintain, building meshes



    for bridge, road and storey and mine supporting meshes.



    Wire mesh fence welding machine production lineWire mesh fence welding machine production line



    Features of product:

    1,CNC wheel-step design to provide high accurate mesh grid



    2,Electrode lift system to extend electrode life



    3,Unique high speed air cylinder used on welding electrode to provide high reliability.



    4,Welding pressure steplessly adjustation to apply multiple wire diameter



    5,Automatically high speed cross wire feeding system.



    TECHNICAL DATA

    Model

    DNW-CNC2000

    DNW-CNC2500

    DNW-CNC3000

    Installed power(kva)

    7*125

    9*125

    15*100

    System coltagte(v)

    380V 50Hz

    380V 50Hz

    380V 50Hz

    Control voltage(v)

    24V

    24V

    24V

    Max.mesh width

    2000

    2500

    3000

    Line wire spacing

    ≥100mm steplessly adjustable

    Cross wire spacing

    ≥100mm steplessly adjustable

    Wire diameter(mm)

    5-12

    5-12

    5-12

    Max.welding capacity

    12+12

    12+12

    12+12

    Max.wlding speed(time/min)

    30-60

    30-60

    30-60

    Max.welding spot nos.(group)

    21

    26

    31

    Pressed air(MPa )

    ≥0.8

    ≥0.8

    ≥0.8

    Wire feeding method

    Pre-cut/off-coil

    Caterconer accutracy

    ≤2

    ≤2

    ≤2

    Material

    galvanized wire, cold-rolled ribbed bar or low carbon steel wire
