Copper Wire Mesh,Copper Mesh for Shielding,Fine Copper Mesh

Copper Wire Mesh,Copper Mesh for Shielding,Fine Copper Mesh

Copper Wire Mesh,Copper Mesh for Shielding,Fine Copper Mesh

Product Details:

Place of Origin: China
Brand Name: Changgu
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Delivery Time: within 15 days
Payment Terms: T/T or L/C
Supply Ability: 1000 square meters per day
Contact Now
Detailed Product Description
Mesh Size: 4mesh To 200mesh Material: Copper Wire
Application: Filter Type: Woven

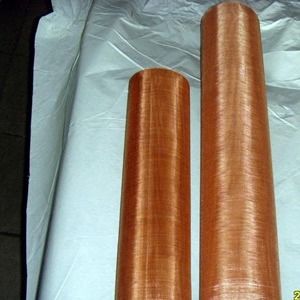

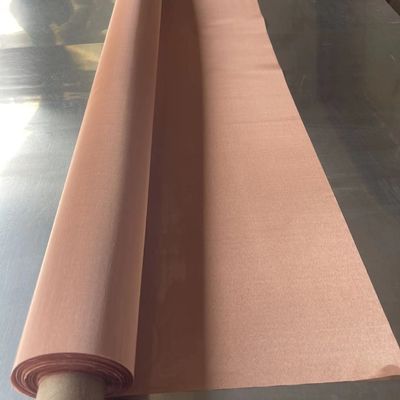

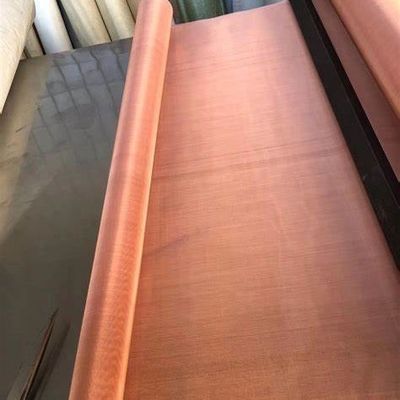

Copper Wire Mesh
Material:Pure Copper
Weaving pattern:
Plain weaving
Twill weaving
Plain dutch weaving
microgroove-plain weaving-twill weaving,
satin weaving,
formatted with a lot of burs
Features:
Better abrasion resistance
Better corrosion resistance
Higher strength and lower electrical conductivity
Non-magnetic
Anti-sparking
Atmospheric corrosion
Salt air and brine resistance
good resistance to rubbing
no magnetism
strong expanding property
Application:
copper wire meshes are applied to a wide range of industries, such as
printing, mining, petroleum, machine building, chemical, rubber,
plastics, food and pharmacy with close structure, high intensity, good
wear-resistance and high durability
Detail Specification List of Copper Wire Mesh
Mesh
Wire Dia.
Opening(mm)
SWG mm inch
6mesh 22 0.711 0.028 3.522
8mesh 23 0.610 0.024 2.565
10mesh 25 0.508 0.020 2.032
12mesh 26 0.457 0.018 1.660
14mesh 27 0.417 0.016 1.397
16mesh 29 0.345 0.014 1.243
18mesh 30 0.315 0.012 1.096
20mesh 30 0.315 0.0124 0.955
22mesh 30 0.315 0.0124 0.840
24mesh 30 0.315 0.0124 0.743
26mesh 31 0.295 0.0116 0.682
28mesh 31 0.295 0.0116 0.612
30mesh 32 0.247 0.011 0.573
32mesh 33 0.254 0.010 0.540
34mesh 34 0.234 0.0092 0.513
36mesh 34 0.234 0.0092 0.472
38mesh 35 0.213 0.0084 0.455
40mesh 36 0.193 0.0076 0.442
42mesh 36 0.193 0.0076 0.412
44mesh 37 0.173 0.0068 0.404
46mesh 37 0.173 0.0068 0.397
48mesh 37 0.173 0.0068 0.356
50mesh 37 0.173 0.0068 0.335
60meshx50mesh 36 0.193 0.0076 -
60meshx50mesh 37 0.173 0.0068 -
60mesh 37 0.173 0.0068 0.250
70mesh 39 0.132 0.0052 0.231
80mesh 40 0.122 0.0048 0.196
90mesh 41 0.112 0.0044 0.170
100mesh 42 0.102 0.004 0.152
120meshx108mesh 43 0.091 0.0036 -
120mesh 44 0.081 0.0032 0.131
140mesh 46 0.061 0.0024 0.120
150mesh 46 0.061 0.0024 0.108
160mesh 46 0.061 0.0024 0.098
180mesh 47 0.51 0.002 0.090
200mesh 47 0.51 0.002 0.076
