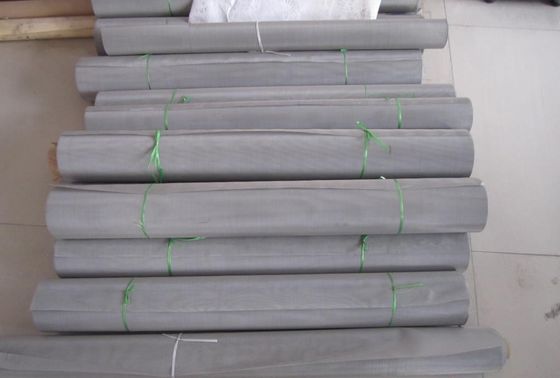

• FeCrAl 0Cr21Al6 Wire Mesh
FeCrAl 0Cr21Al6 Wire Mesh

FeCrAl 0Cr21Al6 Wire Mesh

Product Details:

Place of Origin: China
Model Number: FeCrAl 0Cr21Al6 Wire Mesh

Payment & Shipping Terms:

Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Payment Terms: L/C,T/T,Western Union, paypal
Get Best Price Contact Now

Detail Information

Product Description



FeCrAl 0Cr21Al6 Wire Mesh
 FeCrAl 0Cr21Al6 Wire Mesh has the characteristics of high resistance, low temperature coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, as well as the lower price, it is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.

Chemical Composition
Alloy
Cr%
Al%
Fe%
Re%
0Cr21Al6
19-22
5-7
Bal.
Adequacy

Properties
Alloy
Specific Resistance
(at 20°C)
(µΩ-m)
Hardness
HB
Linear Expansion Coeff.
(T=20 – 1000°C)
x10-6
Maximum Operating
Temperature of Element (°C)
0Cr21Al6
1.42±0.06
200-260
14.7
1250
Mesh Specification
Wire Mesh GB/T 5330.1 ; GB/T 17492 ; JB/T 9155 0.5-250 mesh/Inch; Thickness: Min0.05mm
The manufacture of mesh is started with producing wire. The wire production includes: forging, rolling, annealing and drawing. The wire with right material and wire diameter will be produced. Then the warp wires will be put and prepared on the weaving machine, and then start weaving. From wire to mesh, manufacture process is operated with high standard quality control system. There will be quality test for each batch of product, such as test to diameter tolerance, content, mesh aperture, etc.
Packing Process & Transportation
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air or By sea
Other Terms
Minimum Order Quantity
Manufacture Period
Payment Terms
100 KG
10-15 Days (Small Quantity)
20-40 Days (Mass Quantity)
L/C, T/T, Western Union
