Nickel Mesh/Screen for Fuel Cell
Product Details:
| Place of Origin: | China |
| Brand Name: | Changgu |
| Certification: | ISO 9001 |
| Model Number: | Nickel Mesh/Screen for Fuel Cell |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Packaging Details: | Seal up, with plastic inside and wooden case or carton outside; |
| Delivery Time: | within 7- 20 days after receiving the advance payment. |
| Payment Terms: | L/C,T/T,Western Union, paypal |
|
Detail Information |
Product Description

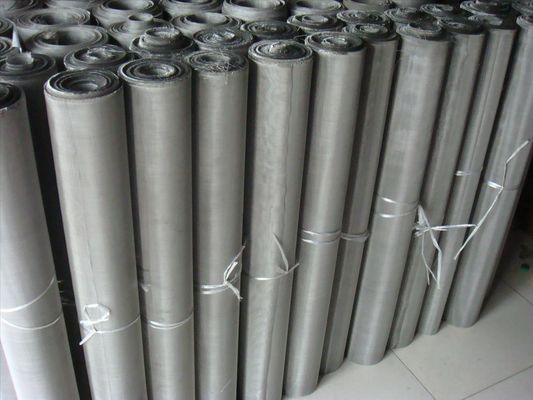

NICKEL MESH / SCREEN FOR FUEL CELL
The Nickel Mesh or screen for fuel cell is made up of high Quality Nickel Wire. Nickel Mesh/Screen for fuel cell, like solid oxide fuel cells is highly corrosion resistant. It is highly resistant to various reducing chemicals and is unexcelled in resistance to caustic alkalis. In addition, the Nickel Mesh has good thermal, electrical and magnetostrictive properties.
The Nickel Mesh screen for fuel cell works as anode, cathode or as a counter electrode. Nickel Wire Mesh helps in electron conduction to terminal as current collector.
Meanwhile, Nickel Mesh work as electro-catalyst in fuel cell, it is also an excellent catalyst. Nickel Wire Mesh makes the fuel cell work more efficiently.
The Nickel Wire Mesh/Screen uses the best material and netting quality.The raw material we use is supplied by Jinchuan nickel industry who is the best and biggest nickel metal supplier in China. The strict quality control process makes Nickel Wire Mesh can withstand in high temperature as high as 800℃. This is very important for the application in fuel cells, such as Solid Oxide Fuel Cells (SOFCs). Material test report of each batch product will be offered when the manufacture is finished.
To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.
Specifications of Nickel Wire Mesh:
18mesh×18mesh, wire diameter 0.25mm,
20mesh×20mesh, wire Diameter: 0.25mm.
Because of different fuel cell design, different specifications of Nickel Wire Mesh will be supplied according to customer's specified requirements.
Chemical Composition of Nickel Wire Mesh:
|
Type
|
Nickel
|
Main substance composition (%)
|
Total substance composition
|
|||||||||||||
|
C
|
Si
|
Fe
|
Mg
|
Cu
|
S
|
Zn
|
As
|
Cd
|
P
|
Sn
|
Sb
|
Pb
|
Bi
|
|||
|
N6
|
>99.5%
|
0.1
|
0.1
|
0.1
|
0.1
|
0.6
|
0.015
|
0.007
|
0.004
|
0.004
|
0.002
|
0.002
|
0.002
|
0.002
|
0.002
|
<0.5%
|
Typical Properties of Nickel Wire Mesh:
|
Type
|
Density
|
Melting point
|
|
N6
|
8.9 g.cm-3 at 20°C
|
1453 °C
|
Mesh Weaving methods:
|
Expanded Mesh
|
|
Perforated Mesh
|
|
Twill Weave mesh
|
|
Dutch Twill Weave Cloth
|
|
Dutch Weave Mesh
|
|
Reverse Dutch Weave Cloth
|
|
5-heddle Weave Mesh
|
|
Cross twill weave
|
|
Plain Weaving Mesh
|
Product Description of Nickel Wire Mesh:
The product produced by us is of good quality and is priced reasonably.
Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.
We can produce variety of products include strip, bar, plate, screen, wire, pipe, wire rod, mesh, netting and conveyor belt, wire and pipe and tube with high quality. We have the strong capacity of scientific research and development and can satisfy the customers' demands of the new products.
Packing Process & Transportation of Nickel Wire Mesh:
We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
We can produce variety of products include strip, bar, plate, screen, wire, pipe, wire rod, mesh, netting and conveyor belt, wire and pipe and tube with high quality. We have the strong capacity of scientific research and development and can satisfy the customers' demands of the new products.
Packing Process & Transportation of Nickel Wire Mesh:
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air: Beijing International Airport OR By sea: Trianjin Seaport
We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
