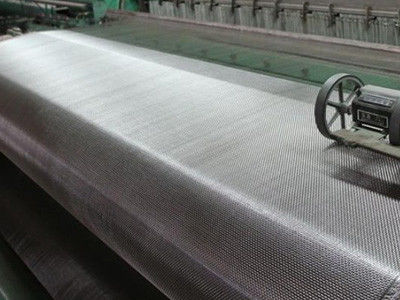

Nickel Wire Mesh/Screen Anode

Nickel Wire Mesh/Screen Anode

Product Details:

Place of Origin: China
Model Number: Nickel Wire Mesh/Screen Anode

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Get Best Price Contact Now

Detail Information

Product Description



 NICKEL MESH / SCREEN ANODE FOR FUEL CELL

Nickel Mesh/Screen Anode for fuel cell (SOFCs) is highly corrosion resistant and made of high quality Nickel. It is highly resistant to various reducing chemicals and is unexcelled in resistance to caustic alkalis. In addition, the Nickel Mesh Electrode has good thermal, electrical and magnetostrictive properties.
   The Nickel Mesh/Screen in fuel cell works as anode, cathode or as a counter electrode. Nickel Mesh helps in electron conduction to terminal as current collector.
    Nickel Mesh works as electro-catalyst in fuel cell and is also an excellent catalyst. Nickel Mesh makes the fuel cell work more efficiently.
To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.

Specifications of Nickel Mesh:
18mesh X 18mesh, wire diameter 0.25mm,
20mesh X 20mesh, Wire Diameter: 0.25mm.
We are here to provide the best service possible and to produce wire mesh under strict management system and quality control. Due to the different fuel cell design there are different specifications of Nickel Mesh and we supply according to customer's specified requirements.

Chemical Composition of Nickel Mesh :
Type
Nickel
Main substance composition (%)
Total substance composition
C
Si
Fe
Mg
Cu
S
Zn
As
Cd
P
Sn
Sb
Pb
Bi
N6
>99.5%
0.1
0.1
0.1
0.1
0.6
0.015
0.007
0.004
0.004
0.002
0.002
0.002
0.002
0.002
<0.5%

Typical Properties of Nickel Mesh:
Type
Density
Melting point
N6
8.9 g.cm-3 at 20°C
1453 °C

Manufacture Process of Nickel Mesh:
The Nickel Mesh Anode produced by Xinxing Nickel Mesh Factory has the best material and netting quality. The raw material we use is supplied by Jinchuan nickel industry who is the best and biggest nickel metal supplier in China. The strict quality control process makes Nickel Mesh can withstand in high temperature as high as 800℃. This is very important for the application in fuel cells, such as Solid Oxide Fuel Cells. Material test report of each batch product will be offered when the manufacture is finished.

Product Description of Nickel Mesh: The product produced by us is of good quality and is priced reasonably
Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
  High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.

Mesh Weaving methods:
Expanded Mesh
Perforated Mesh
Twill Weave mesh
Dutch Twill Weave Cloth
Dutch Weave Mesh
Reverse Dutch Weave Cloth
5-heddle Weave Mesh
Cross twill weave
Plain Weaving Mesh

Packing Process & Transportation of Nickel Wire Mesh:
  Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
  Transportation:By air:Beijing International Airport  OR  By sea:Trianjin Seaport

We provide products and services to meet your most specific requirements. We have experienced teams, effective managing system, advanced methods and producing equipment to offer good and reliable products. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
