Home ProductsIncoloy Wire Cloth

Incoloy 330 Wire Mesh/Screen

Very good wire mesh material suppliers! We ordered Fence, Stainless steel wire mesh and copper mesh for many years, very good

—— Laurence

I'm Online Chat Now

Incoloy 330 Wire Mesh/Screen

China Incoloy 330 Wire Mesh/Screen supplier

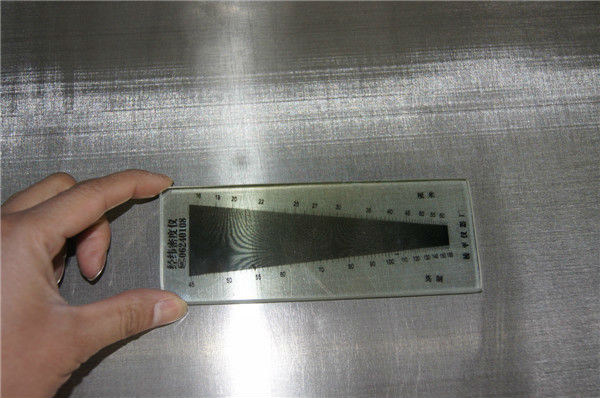

Large Image :  Incoloy 330 Wire Mesh/Screen

Product Details:

Place of Origin: China
Brand Name: Changgu
Model Number: Incoloy 330 Wire Mesh/Screen

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Detailed Product Description



  INCOLOY330WIREMESH / SCREEN

Incoloy 330 Wire Mesh/Screen is an austenitic alloy with good high-temperature strength and corrosion resistance. It has a solid solution composition and is not hard enable by heat treatment. Its high nickel and chromium provide good resistance to oxidation and carburization. Its oxidation resistance is enhanced by the silicon content.

Incoloy 330 Wire Mesh/Screen offers a high level of corrosion resistance, particularly to oxidation, carburization and nitridation. In aqueous environments, the alloy's chromium content provides resistance to oxidizing conditions while its nickel content imparts resistance to reducing conditions. The high nickel also gives Incoloy alloy 330 Wire mesh good resistance to chloride-ion stress-corrosion cracking.

To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.

Available specifications:
Mesh: 0.5-250mesh, Thickness:0.05mm above

Chemical composition(%) of Incoloy 330 Wire Mesh/ Screen:
Alloy
Ni
Cr
Fe
C
Nb
Mn
Cu
Si
S
P
Incoloy 330
34
-37
17.0
-20.0
Bal
0.08
max
0.5
max
2.0
max
1.0
max
0.75
-1.50
0.03
max
0.03
max


Physical Properties of Incoloy 330 Wire Mesh/ Screen:
Density,
0.292 lb/in3
8.08 g/cm3
Melting Range
2520-2590°F
1380-1420°C
Specific Heat
0.11 Btu•lb•°F (32-212°F)
460J/kg•°C (0-100°C)
Permeability at 200 oersteds (15.9 kA/m)
1.02

Applications of Incoloy 330 Wire Mesh / Screen:
Incoloy 330 wire's strength and oxidation resistance at elevated temperatures make it a useful material for industrial heating furnaces;
    1.Muffles, retorts, conveyor systems
    2.Baskets
    3.Boxes
    4.Various fixtures
Mesh/Screen Weaving Method
Expanded Mesh
Perforated Mesh
Twill Weave mesh
Dutch Twill Weave Cloth
Dutch Weave Mesh
Reverse Dutch Weave Cloth
5-heddle Weave Mesh
Cross twill weave
Plain Weaving Mesh


Product Description: The product produced by us is of good quality and is priced reasonably.
         Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
        High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.
Packing Process & Transportation:
       Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
        Transportation:     By air:   Beijing International Airport    OR        By sea:   Trianjin Seaport

We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
