Hastelloy C-22 Mesh Screen

Very good wire mesh material suppliers! We ordered Fence, Stainless steel wire mesh and copper mesh for many years, very good

—— Laurence

I'm Online Chat Now

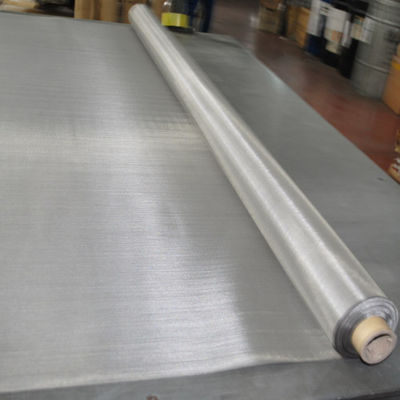

Hastelloy C-22 Mesh Screen

China Hastelloy C-22 Mesh Screen supplier

Large Image :  Hastelloy C-22 Mesh Screen

Product Details:

Place of Origin: China
Brand Name: Changgu
Certification: ISO 9001
Model Number: 0.5-250 mesh

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: moist-proof paper/wooden crate/pallet
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Supply Ability: 1000 square meters per day
Contact Now
Detailed Product Description


Hastelloy C-22 Wire Mesh Screen
UNS Number N06022
 Other common names: Alloy C22
Hastelloy C22 Wire Mesh Screen is a versatile austenitic nickel-chromium-molybdenum-tungsten alloy with enhanced resistance to pitting, crevice corrosion and stress corrosion cracking. The high chromium content provides good resistance to oxidizing media while the molybdenum and tungsten content give good resistance to reducing media. This nickel steel alloy also has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chlorine ions. Other corrosives Hastelloy C-22 Wire Mesh Screen has resistance to are oxidizing acid chlorides, wet chlorine, formic and acetic acids, ferric and cupric chlorides, sea water, brine and many mixed or contaminated chemical solutions, both organic and inorganic. This nickel alloy also offers optimum resistance to environments where reducing and oxidizing conditions are encountered in process streams. This is beneficial in multi- purpose plants where such "upset" conditions occur frequently.
This nickel alloy resists the formation of grain-boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in the as-welded condition.
Alloy C-22 Wire Mesh Screen should not be used in service temperatures above 1250° F (676.7℃) due to the formation of detrimental phases which form above this temperature.

Characteristics of Hastelloy C22 Wire Mesh Screen
l Resistant to pitting, crevice corrosion and stress corrosion cracking
l Outstanding resistance to both reducing and oxidizing media
l Excellent resistance to oxidizing aqueous media
l Exceptional resistance to a wide variety of chemical process environments including strong oxidizers such as ferric acids, acetic anhydride, and seawater and brine solutions
l Resists the formation of grain-boundary precipitates in the weld heat-affected zone
l Excellent weldability

Hastelloy C22 Wire Mesh Screen Chemical Composition, %
.010 max
2.5 max
.50 max
.02 max
.08 max
.02 max
.35 max

In what applications is Hastelloy C22 used?
1.Pharmaceutical industries use alloy C-22 fittings and tubing to avoid contamination caused by corrosion related failures
2.Cellophane manufacturing
3.Chlorination systems
4.Pesticide production
5.Incineration scrubber systems
6.Chemical process industry in equipment like flue gas scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and paper bleach plants, pickling systems, and nuclear fuel reprocessing
7.Waste water processing
