Monel filter wire mesh

Monel filter wire mesh

Monel filter wire mesh

Product Details:

Place of Origin: China
Brand Name: Changgu
Certification: ISO 9001

Payment & Shipping Terms:

Payment Terms: T/T or L/C
Contact Now
Detailed Product Description
Material: Monel

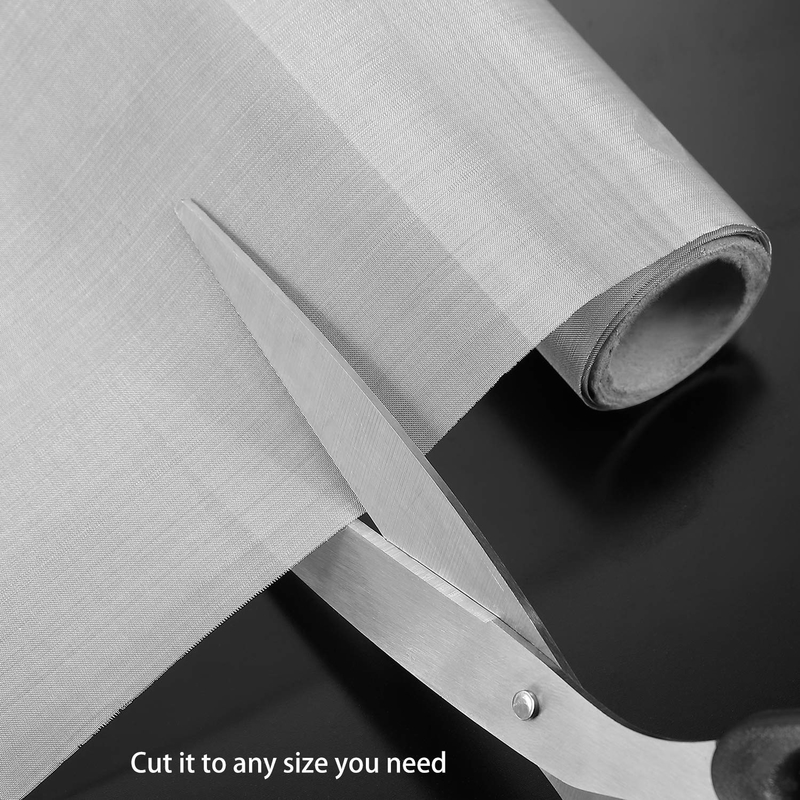

Monel wire mesh
Material:monel 400 and monel 500
Plain weave from 2-200mesh
Monel is a kind of nickel alloy.It has high strength and excellent corrosion resistance in a range of acidic and alkaline sitrations and especially sutiable for reducing conditions.It also has good ductility and thermal conductivity.
Applications:marine engineering,chemical and hydro-carbon processing equipment,heat exchangers,valves,pumps,etc.



mesh

Wire diameter
mm

Aperture
mm

-

mesh

Wire diameter
mm

Apertuer
mm

2

1.80

10.90

40

0.21

0.425

3

1.60

6.866

50

0.19

0.318

4

1.20

5.15

60

0.15

0.273

5

0.91

4.17

70

0.14

0.223

6

0.80

3.433

80

0.12

0.198

8

0.60

2.575

90

0.11

0.172

10

0.55

1.990

100

0.10

0.154

12

0.50

1.616

120

0.08

0.132

14

0.45

1.362

140

0.07

0.111

16

0.40

1.188

150

0.065

0.104

18

0.35

1.060

160

0.065

0.094

20

0.30

0.970

180

0.053

0.088

26

0.28

0.696

200

0.053

0.074

30

0.25

0.596
