Product Details:

Place of Origin: China
Brand Name: Jiechang

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Payment Terms: T/T, L/C, PAYPAL
Get Best Price Contact Now

Detail Information

Product Description

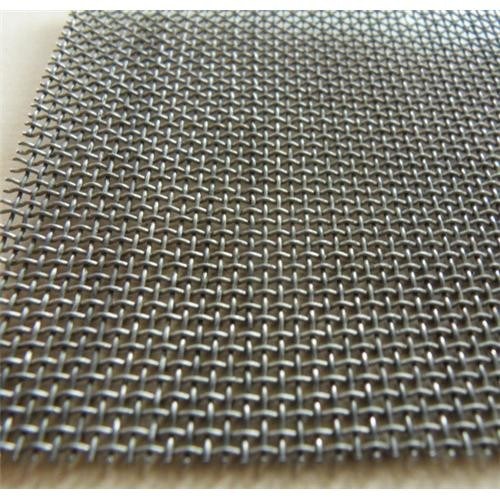

Titanium mesh is lightweight and about 60% of the specific gravity of stainless steel wire mesh, thermal expansion coefficient is about 50% of the stainless steel wire cloth. In addition, about half of the stainless steel mesh and has a initialized modulus is also flexible nature.
characteristics: Chemical resistance is a summary of the nitric acid - strong acid system, and withstand seawater, also wet chlorine gas. For high-strength, corrosion resistance without deterioration due to cold, stress corrosion, has a feature almost no pitting.

Titanium wire mesh is used for living organisms because non-toxic, it can be used such as artificial bone, will also be in direct, fit into the body. And other chemical equipment, oil refining equipment, industrial equipment, etc. It can also be used for pulp and paper.

Weave Pattern: plain weave and twill weave.

Packing: waterproof paper with plastic cloth,then put into wooden box.

The table below shows the most popular specification:

Specification List of Titanium Wire Mesh

Mesh/Inch

Wire Dia
mm
d

Mesh
Opening mm
w

Opening Area
A
%

Mesh /Inch

Wire Dia
mm
d

Mesh Opening
mm
w

Opening Area
A
%

3

0.800

7.670

82.0%

20

0.300

0.970

58.30%

4

1.000

5.350

71.0%

20

0.350

0.920

52.5%

4

0.890

5.460

74.0%

24

0.250

0.808

57.9%

5

1.000

4.080

64.5%

30

0.280

0.567

45.0%

6

0.800

3.433

65.8%

32

0.250

0.544

46.5%

8

0.810

2.365

55.40%

35

0.230

0.496

46.9%

9

0.800

2.022

51.3%

40

0.250

0.385

36.0%

10

1.000

1.540

36.8%

40

0.210

0.425

44.8%

10

0.635

1.905

56.2%

50

0.180

0.328

41.7%

12

0.600

1.517

51.3%

60

0.150

0.273

41.7%

14

0.406

1.408

60.2%

80

0.120

0.198

38.7%

16

0.450

1.138

51.3%

80

0.100

0.218

46.9%

18

0.254

1.157

67.2%

100

0.100

0.154

36.8%



Titanium Alloy Wire

Product Type Wire Dia (mm) Mark Standard
Pure Titanium Wire 0.1-6.0 TA1,TA2 GB/T 3623-2007
Titanium Alloy Wire 0.1-6.0 TA5,TA7,TC1,TC2,TC3,TC4 GB/T 3623-2007
