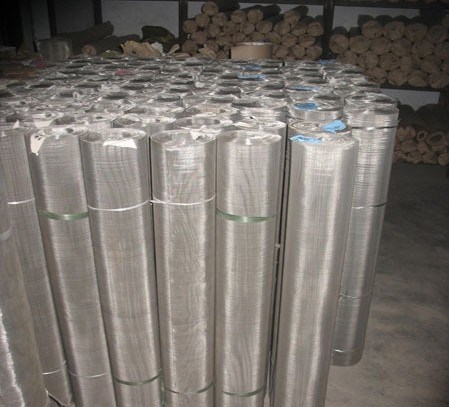

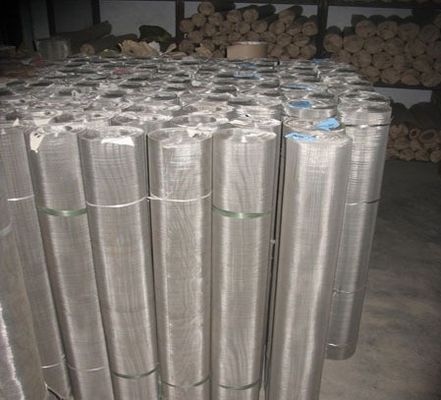

Super Duplex 2304 Stainless Steel Wire Mesh/Screen

Super Duplex 2304 Stainless Steel Wire Mesh/Screen

Super Duplex 2304 Stainless Steel Wire Mesh/Screen

Product Details:

Place of Origin: China
Model Number: Super Duplex 2304 Stainless Steel Wire Mesh/Screen

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Contact Now
Detailed Product Description



Super Duplex 2304 Stainless Steel
Alloy 2304(UNS S32304) is a 23% chromium, 4% nickel, molybdenum-free duplex stainless steel. The Alloy 2304 has corrosion resistance properties similar to 316L. Furthermore, its mechanical properties, i.e., yield strength, are twice those of 304/316 austenitic grades. This allows the designer to save weight, particularly for properly designed pressure vessel applications.
The alloy is particularly suitable for applications covering the -50°C/+300°C (-58°F/572°F) temperature range. Lower temperatures may also be considered but need some restrictions, particularly for welded structures.
With its duplex microstructure and low nickel and high chromium contents, the alloy has improved stress corrosion resistance properties compared to 304 and 316 austenitic grades.
Mesh: 0.5-250 mesh/InchThickness: Min0.05mm
Corrosion Resistance
Because of its high chromium content (23%) the corrosion resistance properties of 2304 are almost equivalent to those of 316L.
The 23% chromium and 0.1% nitrogen additions explain why 2304 duplex stainless steel behaves much better than Alloy 316L when considering pitting and crevice corrosion resistance.
Its corrosion rate in boiling nitric acid (65%) is higher than that of Alloy 316L. Due to its high yield strength, the alloy performs well in abrasion/corrosion applications.
Chemical Analysis
C
Cr
Ni
Mo
N
Others
0.020
23
4
0.2
0.1
S=0.001
PREN (Cr%) + 3.3 (Mo%) = 16 (N%) ≥ 24
Mechanical Properties-- Tensile Properties (Minimum Values)
°C Rp 0.2
MPa
Rp 1.0
MPa
Rm
MPa
20 400 440 600
100
330
365
570
200
280
310
530
300
230
260
490
°F
YS 0.2%
KSI
YS 1.0%
KSI
UTS
KSI
Elongation
%
68
58
64
87
25
212
48
53
83
25
392
41
45
77
20
572
33
38
71
20
Alloy 2304 must not be used for a long time at temperatures higher than 300°C (572°F), where precipitation hardening phenomenon occurs.
Hardness
Average
(5)
HV10
180-230
HB
180-230
HRC
_ 20
Applications
1)Generally where 304 and 316L are used
2)Pulp and paper industry (chip storage tanks, white and black liquor tanks, digestors)
3)Caustic solutions, organic acids (SCC resistance)
4)Food industry
5)Pressure vessels (weight savings)
6)Mining (abrasion/corrosion)
