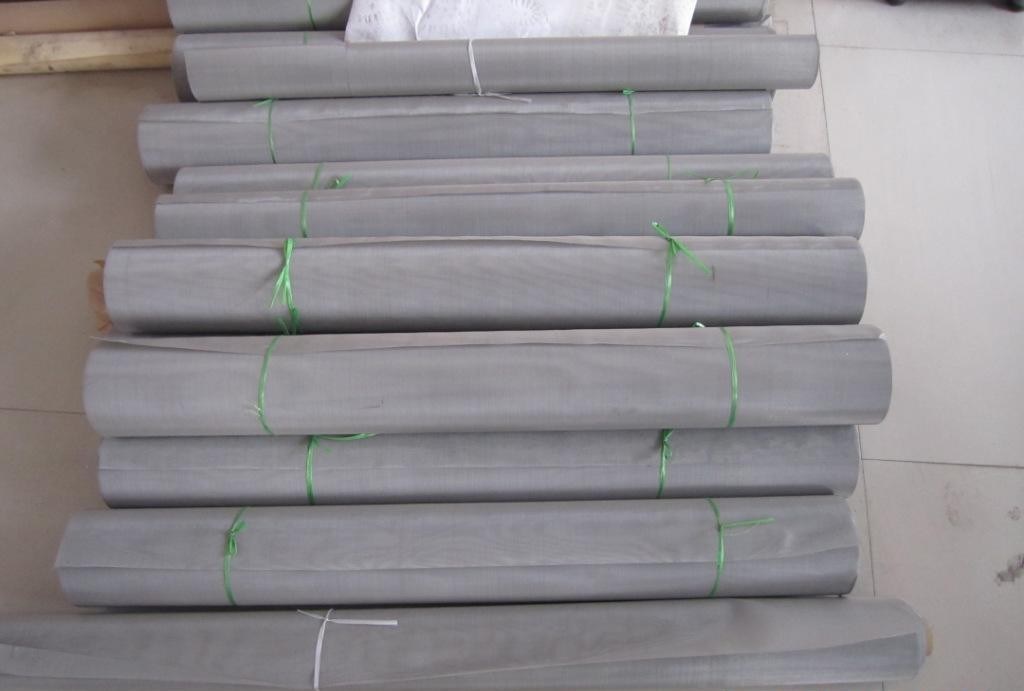

S31803 Duplex Stainless Steel Wire Mesh/Screen

S31803 Duplex Stainless Steel Wire Mesh/Screen

S31803 Duplex Stainless Steel Wire Mesh/Screen

Product Details:

Place of Origin: China
Brand Name: Changgu
Model Number: S31803 Duplex Stainless Steel Wire Mesh/Screen

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Contact Now
Detailed Product Description
Material: Stainless Steel Wire



S31803 Duplex Stainless Steel Wire Mesh/Sscreen
UNS S31803, F51, 1.4462 duplex stainless steel wire mesh is designed to combine improved resistance to stress corrosion cracking, pitting, crevice corrosion and high strength when compared with other stainless alloys. Duplex UNS S31803, F51, 1.4462 duplex alloy mesh resists chloride environments and sulphide stress corrosion. Duplex UNS S31803, F51, 1.4462 is also roughly double the strength of standard austenitic stainless steels. These attributes mean that Duplex UNS S31803, F51, 1.4462 can be used successfully as an alternative to standard stainless steel specifications in applications where higher strength and resistance to stress corrosion cracking is required.  Duplex UNS S31803, F51, 1.4462 is also referred to as 2205.
S31803 Duplex Stainless Steel Wire Mesh/Screen Chemical composition
TYPICAL ANALYSIS
C. Mn. P. S. Si. Cr. Ni. Mo. N.
0.03%
max.
2.00%
max.
0.03%
max.
0.02%
max.
1.00%
max.
21.00-
23.00%
4.50-
6.50%
2.50-
3.50%
0.08-
0.20%
Minimum Mechanical Properties at Room Temperature
(EN1008-3 1.4462 UNS S31803 F51 160mm dia max - solution treated)
Tensile (UTS) 650 - 880 N/mm²
0.2% Proof Stress 448 N/mm² Min
Elongation 25% min
Hardness 290HB Max
Impact 100J


Wire Mesh Specifications:
Mesh
: 0.5-250 mesh/InchThickness: Min0.05mm
