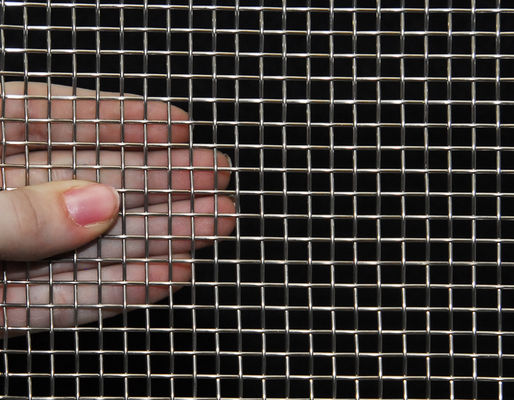

Inconel 783 Wire Mesh/Screen

Inconel 783 Wire Mesh/Screen

Inconel 783 Wire Mesh/Screen

Product Details:

Place of Origin: China

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Contact Now
Detailed Product Description



  INCONEL   783   WIRE  MESH / SCREEN

Inconel 783 Wire Mesh/Screen is an oxidation resistant low coefficient of thermal expansion (low CTE) superalloy developed for gas turbine applications. Inconel 783 Wire Mesh/Screen is strengthened by a precipitation-hardening heat treatment made possible by additions of niobium and aluminum. In addition, the aluminum content provides excellent resistance to oxidation at high temperature. Inconel 783 Wire's density is 5% less than those of superalloys such as INCONEL alloy 718 wire.

The combination of low expansion, high strength and excellent resistance to oxidation makes Inconel 783 Wire Mesh especially useful for gas turbine and steam turbine components. The low expansion enables closer control of clearances and tolerances for greater power output and fuel efficiency.

To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.

Limiting Chemical Composition*, % of Inconel 783 Wire Mesh:
Chromium...................................................................... 2.5-3.5
Nickel .........................................................................26.0-30.0
Iron ..............................................................................24.0-27.0
Niobium...........................................................................2.5-3.5
Aluminum........................................................................5.0-6.0
Cobalt........................................................................Remainder
Boron.......................................................................0.003-0.012
Carbon........................................................................0.03 max.
Manganese .................................................................0.50 max.
Silicon .........................................................................0.50 max.
Phosphorus..............................................................0.015 max.
Sulfur .........................................................................0.005 max
Titanium...........................................................................0.1-0.4
Copper.........................................................................0.50 max

Physical Properties of Inconel 783 Wire Mesh:
Quantity
Value
Unit
Thermal expansion
16 - 17
e-6/K
Thermal conductivity
16 - 16
W/m.K
Specific heat
500 - 500
J/kg.K
Melting temperature
1370 - 1400
°C
Service temperature
0 - 500
°C
Density
8000 - 8000
kg/m3
Resistivity
0.7 - 0.7
Ohm.mm2/m

Mechanical Properties of Inconel 783 Wire Mesh:
Properties
Conditions
T (°C)
Treatment
Density (×1000 kg/m3)
7.7-8.03
25

Poisson's Ratio
0.27-0.30
25

Elastic Modulus (GPa)
190-210
25

Tensile Strength (Mpa)
1158
25
oil quenched, fine grained, tempered at 425°C
Yield Strength (Mpa)
1034
Elongation (%)
15
Reduction in Area (%)
53
Hardness (HB)
335
25
oil quenched, fine grained, tempered at 425°C

Thermal Properties of Inconel 783 Wire Mesh:
Properties
Conditions
T (°C)
Treatment
Thermal Conductivity (W/m-K)
42.7
100

Specific Heat (J/kg-K)
477
50-100


Mesh's Woven Method
Expanded Mesh
Perforated Mesh
Twill Weave mesh
Dutch Twill Weave Cloth
Dutch Plain Weave
Dutch Weave Mesh
Reverse Dutch Weave Cloth
5-heddle Weave Mesh
Cross twill weave
Plain Weaving Mesh

Product Description: The product produced by us is of good quality and is priced reasonably.
         Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
        High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.

Packing Process & Transportation:
       Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
        Transportation:     By air:   Beijing International Airport    OR        By sea:   Trianjin Seaport

We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
