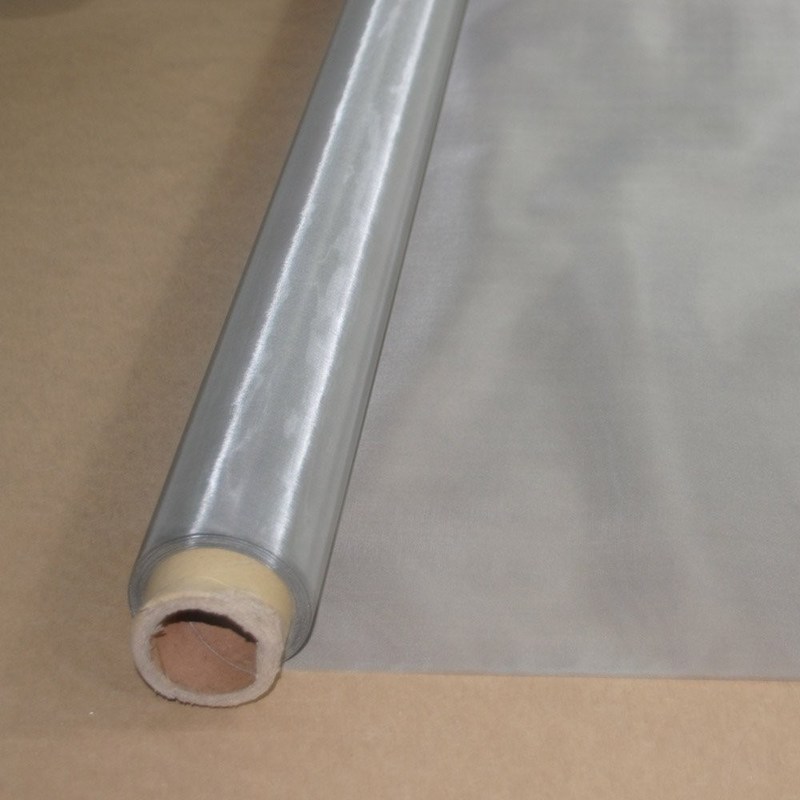

High Quality Stainless Steel Wire Mesh

High Quality Stainless Steel Wire Mesh

High Quality Stainless Steel Wire Mesh

Product Details:

Place of Origin: China
Brand Name: Changgu
Certification: ISO 9001

Payment & Shipping Terms:

Packaging Details: Kraft Paper Plastic Film
Payment Terms: L/C,T/T,Western Union, paypal
Contact Now
Detailed Product Description
Wire Gauge: 0.02mm-2mm Type: Wire Cloth
Application: Filter Hole Shape: Square



Stainless Steel Wire Mesh:

Wire diameter: 0.02mm-2mm, etc
Mesh size: 2mesh-635mesh
Weave style: Plain weave, twill weave, Dutch weave
Material: SS304, 304L, 316, 316L stainless steel wire
Standard roll width of stainless steel wire mesh: 2'' to 8"
Standard roll length of stainless steel wire mesh: 50'' to 100"
Other specifications of stainless steel wire mesh are also available.
Feature: Acid-resisting, alkalinity-resisting, heat-resisting, wear-resisting and oxidize-resisting.
Application: Stainless steel wire mesh is widely used in chemical industry, environment protection, mine industry, airspace industry, paper-making, electronic industry, metallurgy industry, food industry, pharmacy etc.
Packing: Wrapped with moister-barrier paper, then in wooden cases.

Specification List of Stainless Steel Wire Mesh
Mesh/Inch Wire Diameter(mm) Aperture (mm) Filtration Area% Mesh/Inch Wire Diameter(mm) Aperture (mm) Filtration Area%
2 1.60 11.10 76 80 0.13 0.187 35
3 1.60 6.87 66 100/90 0.10 0.167 39
4 1.60 4.75 56 100 0.10 0.154 37
5 1.00 4.08 64 100 0.11 0.144 32
6 0.90 3.33 62 120 0.09 0.122 33
8 0.90 2.28 51 120 0.08 0.132 39
8 0.70 2.47 61 150 0.065 0.104 38
10 0.50 2.04 64 200 0.05 0.077 37
12 0.50 1.62 59 200 0.04 0.084 47
14 0.50 0.50 52 250 0.04 0.062 37
16 0.35 1.24 61 250 0.035 0.067 43
18 0.28 1.13 64 250 0.03 0.072 50
20 0.35 0.92 52 300 0.04 0.045 28
24 0.35 0.71 45 300 0.03 0.055 42
28 0.35 0.56 38 325 0.035 0.043 30
30 0.28 0.57 45 325 0.028 0.050 41
40 0.22 0.42 43 400 0.030 0.034 28
50 0.18 0.33 42 400 0.023 0.042 43
60 0.16 0.26 39 508 0.025 0.025 26
70 0.14 0.223 38 635 0.018 0.0203 25
