H15YU5 0Cr15Al5 alloy mesh/screen

H15YU5 0Cr15Al5 alloy mesh/screen

H15YU5 0Cr15Al5 alloy mesh/screen

Product Details:

Place of Origin: China
Model Number: H15YU5 0Cr15Al5 alloy mesh/screen

Payment & Shipping Terms:

Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Payment Terms: L/C,T/T,Western Union, paypal
Contact Now
Detailed Product Description

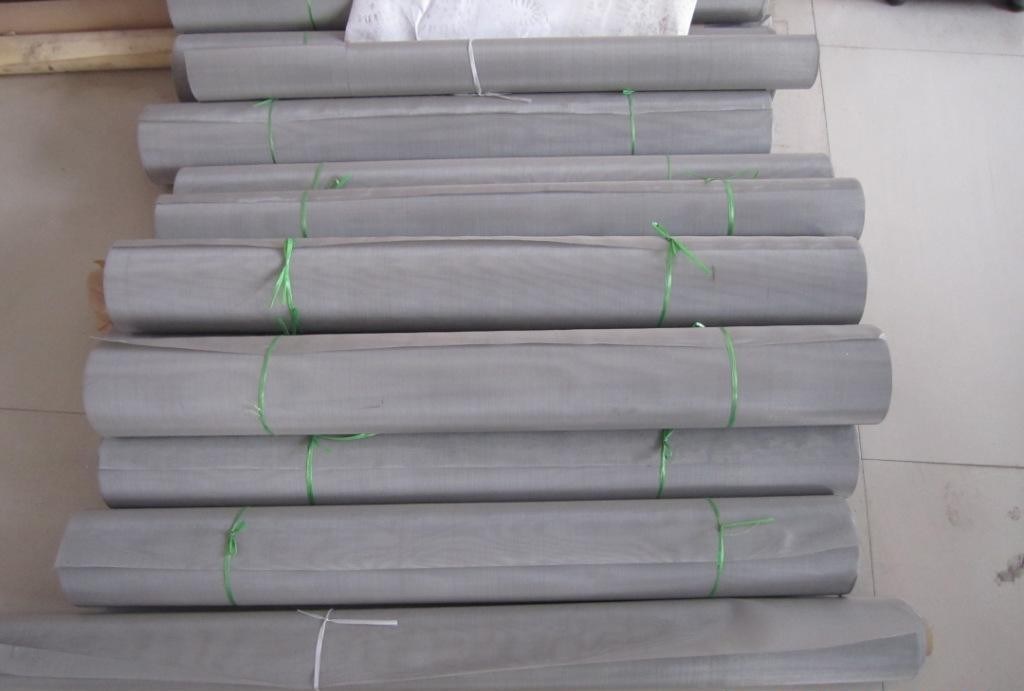

H15YU5 0Cr15Al5 Mesh/Screen

Introduction to products
With the characteristics of high resistance, low temperature coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, as well as the lower price, it is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.


Chemical Composition (%)
Alloy
C
P
S
Mn
Si
Cr
Ni
Al
Fe
0.12
0.025
0.025
0.7
≤1.00
14.5-15.5
4.5-5.3
Rest

Properties
Alloy
0Cr15Al5
H15YU5
Yield strength(MPa)
590-690
Elongation (%)
> 12
Density g/cm3
7.15
·Electrical resistivity (Ωmm2 / m)
1.30 ± 0.05
The highest temperature continuous operation (° C)
750
Melting point (° C)
1500
Thermal conductivity (kJ / m * h * ° C)
52.4
Coefficient of linear expansion (α×10-6 / ° C)
6.15
