Home ProductsFeCrAl Mesh

FeCrAl 1Cr13Al4 Wire Mesh

FeCrAl 1Cr13Al4 Wire Mesh

FeCrAl 1Cr13Al4 Wire Mesh

Product Details:

Place of Origin: China
Model Number: FeCrAl 1Cr13Al4 Wire Mesh

Payment & Shipping Terms:

Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Payment Terms: L/C,T/T,Western Union, paypal
Contact Now
Detailed Product Description

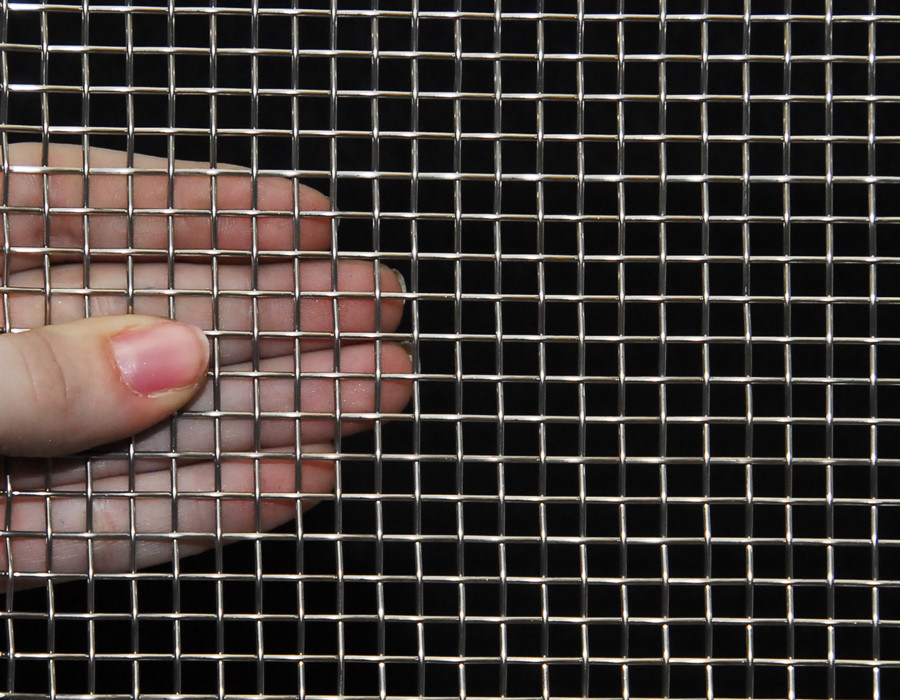

FeCrAl 1Cr13Al4 Wire Mesh
FeCrAl 1Cr13Al4 Wire Mesh is a ferritic iron-chromium-aluminium alloy (FeCrAl alloy) Mesh which has been developed for low temperature applications. It is suited for use in appliances and can replace all low temperature materials in such applications. Maximum operating temperature in continuous operation is 950°C.

Chemical Composition
Alloy
Cr%
Al%
Fe%
Re%
1Cr13Al4
20.5-23.5
4.2-5.3
Bal.
Adequacy

Properties
Alloy
Specific Resistance
(at 20°C)
(µΩ-m)
Hardness
HB
Linear Expansion Coeff.
(T=20 – 1000°C)
x10-6
Maximum Operating
Temperature of Element (°C)
1Cr13Al4
1.25±0.08
200-260
15.4
950
Mesh Specification
Wire Mesh GB/T 5330.1 ; GB/T 17492 ; JB/T 9155 0.5-250 mesh/Inch; Thickness: Min0.05mm
Manufacture Process
The manufacture of mesh is started with producing wire. The wire production includes: forging, rolling, annealing and drawing. The wire with right material and wire diameter will be produced. Then the warp wires will be put and prepared on the weaving machine, and then start weaving. From wire to mesh, manufacture process is operated with high standard quality control system. There will be quality test for each batch of product, such as test to diameter tolerance, content, mesh aperture, etc.
Packing Process & Transportation
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air or By sea
Other Terms
Minimum Order Quantity
Manufacture Period
Payment Terms
100 KG
10-15 Days (Small Quantity)
20-40 Days (Mass Quantity)
L/C, T/T, Western Union
