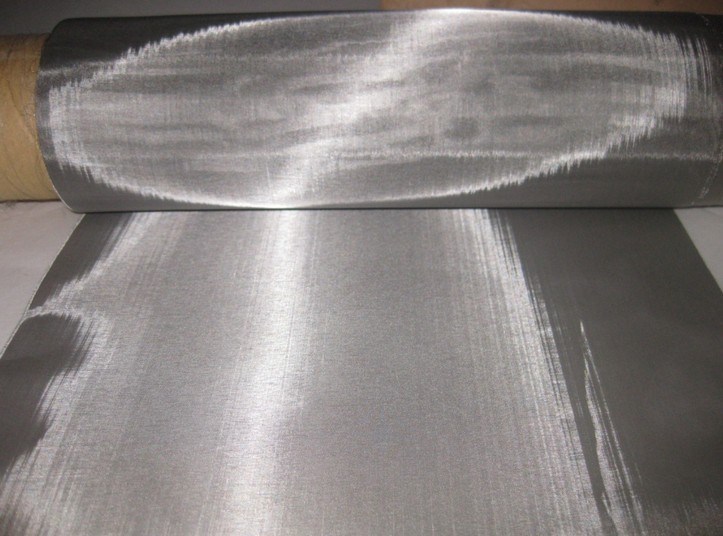

Alloy LDX 2101 Super Duplex Stainless Steel Mesh/Screen

Alloy LDX 2101 Super Duplex Stainless Steel Mesh/Screen

Alloy LDX 2101 Super Duplex Stainless Steel Mesh/Screen

Product Details:

Place of Origin: China
Brand Name: Changgu

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Contact Now
Detailed Product Description



Alloy LDX 2101 Super Duplex Stainless Steel
Alloy LDX 2101 is a low-nickel, nitrogen enhanced lean duplex stainless steel developed for general-purpose use. The austenitic-ferritic (duplex) structure of the alloy is balanced to approximately equal amounts of ferrite and austenite in the solution-annealed condition.
Alloy LDX 2101 possesses both superior strength and greater chloride stress-corrosion cracking resistance than conventional 300 series stainless steels.
The corrosion resistance of LDX 2101 is generally good making it suitable for use in a wide variety of applications. In most environments, it is superior to 304L stainless steel and comparable to the molybdenum containing 316L stainless steel.
Mesh: 0.5-250 mesh/InchThickness: Min0.05mm

Corrosion Resistance

The 300 series stainless steels are used extensively in numerous process industries due to their overall general corrosion resistance. The corrosion resistance of LDX 2101 is generally better than 304L and comparable to 316L making it suitable for use in a wide variety of industries and applications.
Chemical Analysis
Typical Values (Weight %)
Cr Ni Mn Mo N
21.0 min. -
22.0 max.
1.35 min. -
1.70 max.
4.00 min. -
6.00 max.
0.10 min. -
0.80 max.
0.20 min. -
0.25 max.
Physical Properties
  Temperature, ºF
68 200 400 600
Density lb/in3 0.28
Modules of Elasticity x 106 psi 29 28 27 26
Poissons Ratio   0.3
Linear Expansion x 10-6 in/in/°F 7.2 7.5 7.5
Thermal Conductivity Btu/ft/h °F 8.7 9.3 9.8 10.4
Thermal Capacity J/kg °F 500 530 560 590
Electric Resistivity micro-ohms•meter 0.80 0.85 0.90 1.00
Mechanical Properties
  Minimum values
(.625" Plate)
Typical values
(.625" Plate)
0.2% Yield Strength ksi 65 69
Tensile Strength ksi 94 101
Elongation % 30 38
Hardness (Brinell) HB 290 (max) 225
LDX 2101 exhibits good abrasion and erosion resistance and can be fabricated using standard shop practices developed for duplex stainless steels.
Applications
Air Pollution Control
      External absorber and outlet duct reinforcements
Biofuels
      Biodiesel and Ethanol plants and tanks
Chemical Process Equipment
      Pressure vessels, heat exchangers, tanks, piping systems and tankers
Food and Beverage Process Equipment
      Palm oil and wine storage tanks
Infrastructure
      Bridges, flood gates, sluice gates
Pulp and Paper
      Hydrogen peroxide bleaching reactors, white liquor storage tanks, digesters,
      washers, paper machine parts
Seawater Treatment
     Desalination system chambers and evaporators
Water and Wastewater Treatment
