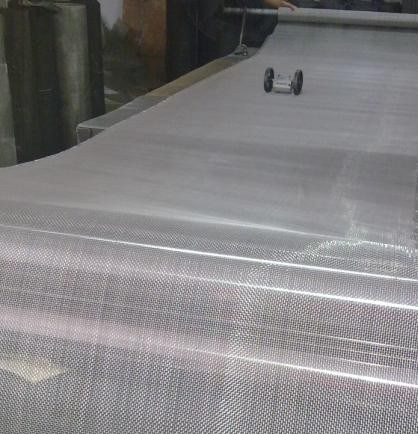

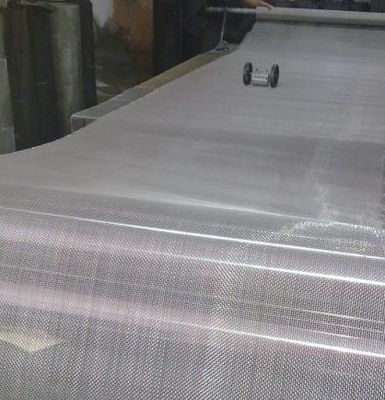

309 Stainless Steel Wire Mesh/Screen

309 Stainless Steel Wire Mesh/Screen

309 Stainless Steel Wire Mesh/Screen

Product Details:

Place of Origin: China
Model Number: 309 Stainless Steel Wire Mesh/Screen

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Contact Now
Detailed Product Description



309 Stainless Steel Wire Mesh/Screen
Grade 309 stainless steel wire mesh is austenitic alloy used for its excellent oxidation resistance, high temperature strength and creep resistance. The lower nickel content of SX309 improves resistance to sulphur attack at high temperatures. It is tough and ductile, and can be readily fabricated and machined.
309 Stainless Steel Wire Mesh/Screen Typical Applications
Grade 309/309S is used exclusively for its high temperature oxidation resistance. It is common for Grade 309, 310 and 321 to be used in the same piece of equipment in the various temperature regions.
309 Stainless Steel Wire Mesh/Screen Chemical Composition (ASTM A240)
  C Mn P S Si Cr Ni
309
309S
0.20 max 2.00
max
0.045
max
0.030
max
1.00
max
22.0 -
24.0
12.0 -
15.0
0.08 max
Mechanical Properties at Room Temperature
  Grade 309 Grade 309S
  TYPICAL MIN TYPICAL MIN
Tensile Stength       MPa 560 515 540 515
Proof Stress (0.2% Offset)                    MPa 285 205 280 205
Elongation
(Percent in 50 mm)
54 40 54 40
Hardness (Brinell) 164   159
Endurance (fatigue) limit                       MPa 260   260
Properties at Elevated Temperatures
Short Time Elevated Temperature Tensile Stress
Temperature oC 550 650 750 850 950 1 050
Tensile Stress MPa 440 360 240 150 70 30
Creep Rupture Stress
Time Temperature oC 600 700 800 900 1 000
1 000 h
10 000 h
100 000 h
Stress MPa
Stress MPa
Stress MPa
180
150
100
90
50
40
35
30
20
20
10
5


-
