FeCrAl 1Cr13Al4 Infrared Ray Wire Mesh
Product Details:
| Place of Origin: | China |
| Model Number: | FeCrAl 1Cr13Al4 Infrared Ray Wire Mesh |
Payment & Shipping Terms:
| Packaging Details: | Seal up, with plastic inside and wooden case or carton outside; |
|---|---|
| Payment Terms: | L/C,T/T,Western Union, paypal |
|
Detail Information |
Product Description

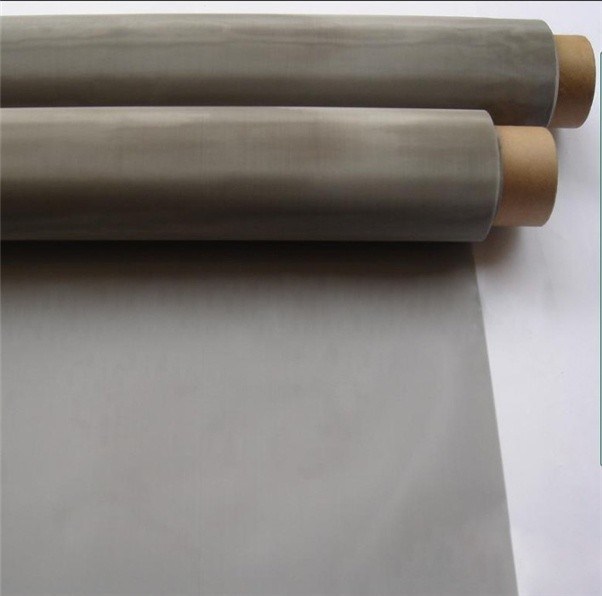

FeCrAl 1Cr13Al4 Infrared Ray Wire Mesh
FeCrAl 1Cr13Al4 Infrared Ray Wire Mesh is a ferritic iron-chromium-aluminium alloy (FeCrAl alloy) Mesh which has been developed for low temperature applications. It is suited for use in appliances and can replace all low temperature materials in such applications. Maximum operating temperature in continuous operation is 950°C.
Chemical Composition
|
Alloy
|
Cr%
|
Al%
|
Fe%
|
Re%
|
|
1Cr13Al4
|
20.5-23.5
|
4.2-5.3
|
Bal.
|
Adequacy
|
Properties
|
Alloy
|
Specific Resistance
(at 20°C)
(µΩ-m)
|
Hardness
HB
|
Linear Expansion Coeff.
(T=20 – 1000°C)
x10-6
|
Maximum Operating
Temperature of Element (°C)
|
|
1Cr13Al4
|
1.25±0.08
|
200-260
|
15.4
|
950
|
Mesh Specification
| Wire Mesh | GB/T 5330.1 ; GB/T 17492 ; JB/T 9155 | 0.5-250 mesh/Inch; Thickness: Min0.05mm |
The manufacture of mesh is started with producing wire. The wire production includes: forging, rolling, annealing and drawing. The wire with right material and wire diameter will be produced. Then the warp wires will be put and prepared on the weaving machine, and then start weaving. From wire to mesh, manufacture process is operated with high standard quality control system. There will be quality test for each batch of product, such as test to diameter tolerance, content, mesh aperture, etc.
Packing Process & Transportation
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air or By sea
Other Terms
|
Minimum Order Quantity
|
Manufacture Period
|
Payment Terms
|
|
|
100 KG
|
10-15 Days (Small Quantity)
|
20-40 Days (Mass Quantity)
|
L/C, T/T, Western Union
|
