• Nickel 270 Wire mesh Nickel /screen
Nickel 270 Wire mesh Nickel /screen

Nickel 270 Wire mesh Nickel /screen

Product Details:

Place of Origin: China
Brand Name: Changgu
Model Number: Nickel 270 Wire mesh Nickel /screen

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Get Best Price Contact Now

Detail Information

Product Description

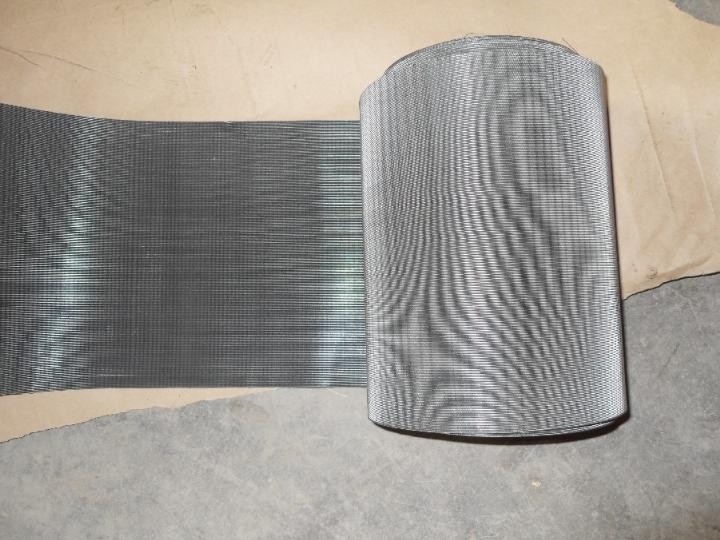

NICKEL 270 WIRE MESH / SCREEN
Nickel-270 Wire mesh/screen is a commercially pure nickel. When cold-worked through reductions in area of 10 to 94%, it displays slight recovery hardening after annealing in the temperature range 200° to 300°C. The 30-minute recrystallization temperatures are in the range 290 to 400°C and are inversely proportional to the degree of prior cold work. The time dependence of recrystallization in specimens deformed 94% yields an apparent activation energy of about 40 kcal/mole, which is in better agreement with that for zone-refined nickel than with that for substantially less pure nickel.

To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.


Chemistry Data (%) :
Nickel C Cu Fe Co Cr Mn Ti
Balance
0.09
max
0.001 max
0.005
max
0.001
min
0.001
max
0.001
0.005
max

Physical Properties of Nickel 270 Wire Mesh/ Screen:
Density Specific Gravity Curie Temp Melting Point Electrical Resistivity Thermal Conductivity Specific Heat Thermal Expansion
0.321 lb/cu in 8.89
680°F
(360°C)
2624°F
(1440°C)
7.5 Micro-ohm-cm 0.86 W/cm.°C 0.108 Cal/g-°C 7.2ppm/°F (212°F)

MechanicalProperties of Nickel 270 Wire Mesh / Screen:
Tensile Strength Yield Strength Elongation Modules of Elasticity
65ksi 44MPa 20ksi 138MPa 40 % 30Mpsi 207kMPa

Applications:
Resistance thermometers, electronic cathodes or anodes, fluorescent light components.

Machinability:
May be machined by conventional means although the alloy is soft and "gummy". High-speed-steel tooling with very positive rake angle is recommended

Expanded Mesh
Perforated Mesh
Twill Weave mesh
Dutch Twill Weave Cloth
Dutch Weave Mesh
Reverse Dutch Weave Cloth
5-heddle Weave Mesh
Cross twill weave
Plain Weaving Mesh

Product Description: The product produced by us is of good quality and is priced reasonably.
         Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
        High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.

Packing Process & Transportation:
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation:   By air: Beijing International Airport      OR      By sea: Trianjin Seaport

We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
