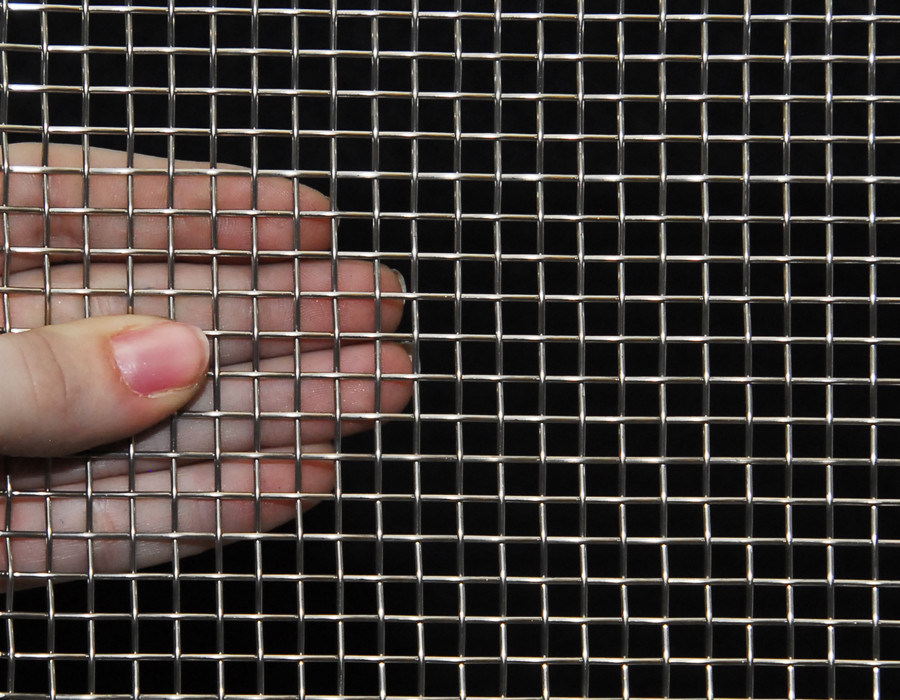

Nickel 220 Wire mesh/screen
Product Details:
| Place of Origin: | China |
| Model Number: | Nickel 220 Wire mesh/screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Packaging Details: | Seal up, with plastic inside and wooden case or carton outside; |
| Delivery Time: | within 7- 20 days after receiving the advance payment. |
| Payment Terms: | L/C,T/T,Western Union, paypal |
|
Detail Information |
Product Description
NICKEL 220 ALLOY MESH / SCREEN
Nickel 220 alloy mesh/screen is very similar to Nickel 205 mesh screen, except with a chemical composition controlled specifically for application as cathodes in electronic tubes.
To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.
We are here to provide the best service possible and to produce wire mesh under strict management system and quality control.Our talented team of experienced wire mesh technicians and engineers employ the latest technologies to produce quality wire mesh and its processed articles.
Chemistry Data (%) of Nickel 220 Alloy Mesh / Screen:
| Nickel | C | Cu | Fe | Mg | Mn | Si | S | Ti |
| Balance | 0.15 max | 0.1 max | 0.1 max | 0.008- 0.01 | 0.2 max | 0.01- 0.05 | 0.008 max | 0.01-0.05 |
Physical Data : [top] of Nickel 220 Alloy Mesh / Screen
| Density (×1000 kg/m3) | 7.7-8.03(25°C) |
| Specific Gravity | 8.8 |
| Specific Heat (Btu/lb/°F - [32-212°F]) | 0.109 |
| Electrical Resistivity (microhm-cm (at 68°F)) | 61 |
| Thermal Conductivity | 506 |
| Mean Coeff Thermal Expansion | 7.4 |
| Modulus of Elasticity Tension | 30 |
Mechanical Properties of Nickel 220 Alloy Mesh / Screen
|
Properties
|
Conditions
|
||
|
T (°C)
|
Treatment
|
||
|
Elastic Modulus (GPa)
|
190-210
|
25
|
|
|
Tensile Strength (Mpa)
|
1158
|
25
|
oil quenched, fine grained,
tempered at 425°C
|
|
Yield Strength (Mpa)
|
1034
|
||
|
Elongation (%)
|
15
|
||
|
Reduction in Area (%)
|
53
|
||
|
Hardness (HB)
|
335
|
25
|
oil quenched, fine grained,
tempered at 425°C
|
Applications of Nickel 220 Alloy Mesh / Screen:
Cathode plates in electronic tubes.
Product Description of Nickel 220 Alloy Mesh / Screen:
The product produced by us is of good quality and is priced reasonably.
Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.
Available Properties of Nickel 220 Alloy Mesh / Screen:
| Machinability | The alloy is machinable by conventional means. It is "gummy" in behavior however |
| Forming | Easily formed by conventional means |
| Welding | Weldable by all conventional methods |
| Heat Treatment | May be annealed at 1950 F and air cooled. Otherwise not responsive to heat treatment |
| Cold Working | Readily cold worked by conventional means |
| Annealing | Anneal at 1600 F and air cool |
| Hardening | Hardens by cold work only |
Mesh Weaving methods:
|
Expanded Mesh
|
|
Perforated Mesh
|
|
Twill Weave mesh
|
|
Dutch Twill Weave Cloth
|
|
Dutch Weave Mesh
|
|
Reverse Dutch Weave Cloth
|
|
5-heddle Weave Mesh
|
|
Cross twill weave
|
|
Plain Weaving Mesh
|
Packing Process & Transportation of Nickel 220 Alloy Mesh / Screen:
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air:Beijing International Airport OR By sea:Trianjin Seaport
We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
