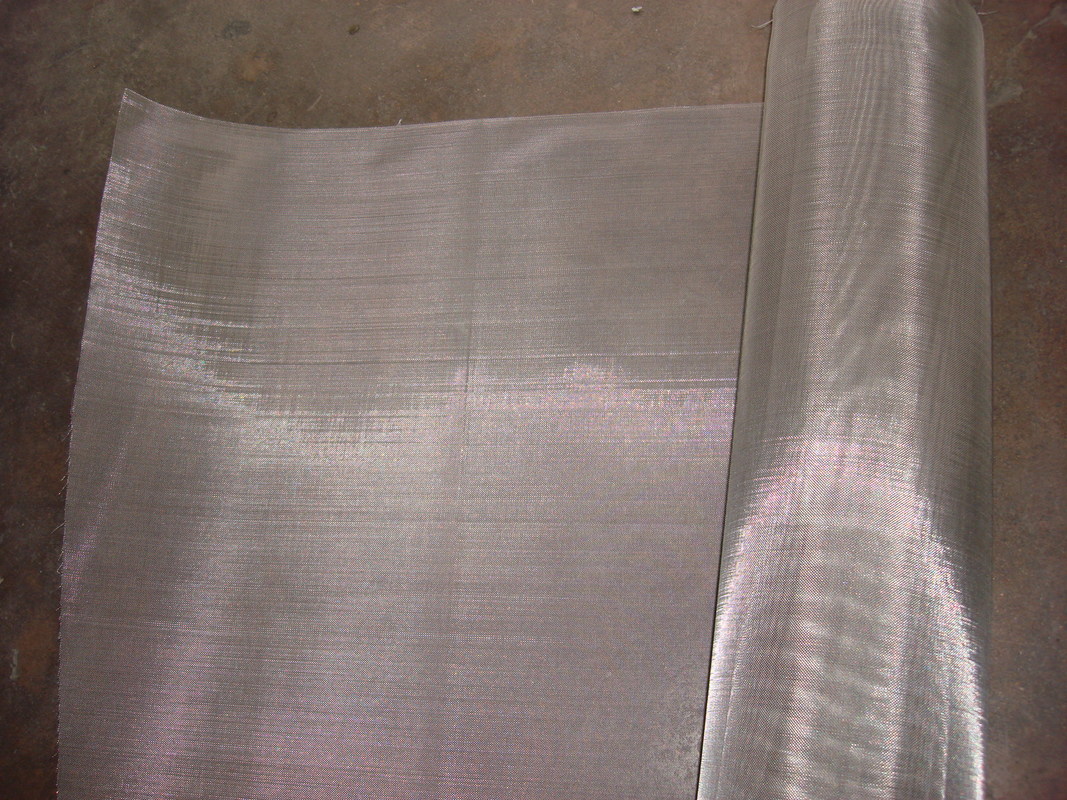

NICKEL 233 WIRE MESH / SCREEN

Nickel 233 wire mesh/screen is a commercially pure wrought nickel alloy combining excellent corrosion resistance with high electrical and thermal conductivities.
To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.
Our talented team of experienced wire mesh technicians and engineers employ the latest technologies to produce quality wire mesh and its processed articles.
We are here to provide the best service possible and to produce wire mesh under strict management system and quality control.

Chemistry Data (%)of Nickel 233 Wire Mesh / Screen:
Nickel C Cu Fe Mg Mn Si S Ti
Balance 0.1max 0.1 max 0.1 max 0.01- 0.1 0.3 max 0.1max 0.008max 0.005max

Physical Properties of Nickel 233 Wire Mesh / Screen :
Quantity Value
Thermal expansion (e-6/K) 16 - 17
Thermal conductivity( W/m.K) 16
Specific heat( J/kg.K) 500
Melting temperature(°C) 1370 - 1400
Service temperature(°C) 0 - 500
Density(kg/m3) 8.0
Resistivity (Ohm.mm2/m) 0.7

Applications of Nickel 233 Wire Mesh / Screen :
Generally employed in temperature sensors, lead frames, transducers, transistors and a variety of electronic components.


Product Description of Nickel 233 Wire Mesh / Screen:
           The product produced by us is of good quality and is priced reasonably.
   Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
   High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.

Manufacture Process of Nickel 233 Wire Mesh / Screen :
1. Forming: Conventional cold and hot forming methods may be employed with this alloy. Full annealing after work is required to reattain maximum properties.
2. Welding: Nickel 233 wire may be welded, soldered or brazed using most conventional processes. Clean and remove all foreign objects prior to welding to assure maximum weld integrity.
3. MachinabilityBehaves like the other 99% nickel content alloys. Nickel 233 wire is machinable by conventional means, but "gummy" in behavior. Rigid tooling and aggressive feed rates assist in good machining.

Mesh Weaving Method
Expanded Mesh
Perforated Mesh
Twill Weave mesh
Dutch Twill Weave Cloth
Dutch Weave Mesh
Reverse Dutch Weave Cloth
5-heddle Weave Mesh
Cross twill weave
Plain Weaving Mesh


Packing Process & Transportation of Nickel of Nickel 233 Wire Mesh / Screen :
      Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
        Transportation:   By air: Beijing International Airport     OR    By sea: Trianjin Seaport
