FeCrAl 0Cr21Al6Nb Screen
Product Details:
| Place of Origin: | China |
| Model Number: | FeCrAl 0Cr21Al6Nb Screen |
Payment & Shipping Terms:
| Packaging Details: | Seal up, with plastic inside and wooden case or carton outside; |
|---|---|
| Payment Terms: | L/C,T/T,Western Union, paypal |
|
Detail Information |
Product Description

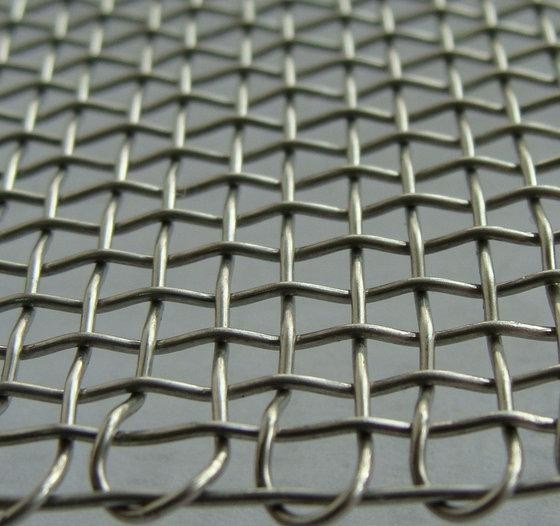

FeCrAl 0Cr21Al6Nb Screen
The FeCrAl 0Cr21Al6Nb Screen with the characteristics of high resistance, low temperature coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, as well as the lower price, it is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.
Chemical Composition (%) and Properties
|
Type
|
0Cr21Al6Nb
|
|
|
Chemical composition
|
Cr
|
21.0-23.0
|
|
Al
|
5.0-7.0
|
|
|
Re
|
opportune
|
|
|
Fe
|
Rest
|
|
|
Maximal Temperature (oC)
|
1350
|
|
|
Resistivity 20oC (10-6ohm*m)
|
1.45
|
|
|
Density(g/cm3)
|
7.1
|
|
|
Thermal conductivity (KJ/m*h*oC)
|
46.1
|
|
|
Extend strength (a*10-6/oC)
|
16
|
|
|
Melting point ( oC)
|
1510
|
|
|
Tensile strength(N/mm2)
|
650-800
|
|
|
Percentage elongation (%))
|
>12
|
|
|
Section shrink rate(%)
|
65-75
|
|
|
curve strength(F/R)
|
>5
|
|
|
hardness (H.B.)
|
200-260
|
|
|
Microstructure
|
Ferrite
|
|
|
Magnetism
|
Magnetic
|
|
Mesh Specification
| Wire Mesh | GB/T 5330.1 ; GB/T 17492 ; JB/T 9155 | 0.5-250 mesh/Inch; Thickness: Min0.05mm |
The manufacture of mesh is started with producing wire. The wire production includes: forging, rolling, annealing and drawing. The wire with right material and wire diameter will be produced. Then the warp wires will be put and prepared on the weaving machine, and then start weaving. From wire to mesh, manufacture process is operated with high standard quality control system. There will be quality test for each batch of product, such as test to diameter tolerance, content, mesh aperture, etc.
Packing Process & Transportation
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air or By sea
Other Terms
|
Minimum Order Quantity
|
Manufacture Period
|
Payment Terms
|
|
|
100 KG
|
10-15 Days (Small Quantity)
|
20-40 Days (Mass Quantity)
|
L/C, T/T, Western Union
|
