0Cr21Al6 resistance heating alloy mesh/screen
Product Details:
| Place of Origin: | China |
| Model Number: | 0Cr21Al6 resistance heating alloy mesh/screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Packaging Details: | Seal up, with plastic inside and wooden case or carton outside; |
| Payment Terms: | L/C,T/T,Western Union, paypal |
|
Detail Information |
Product Description

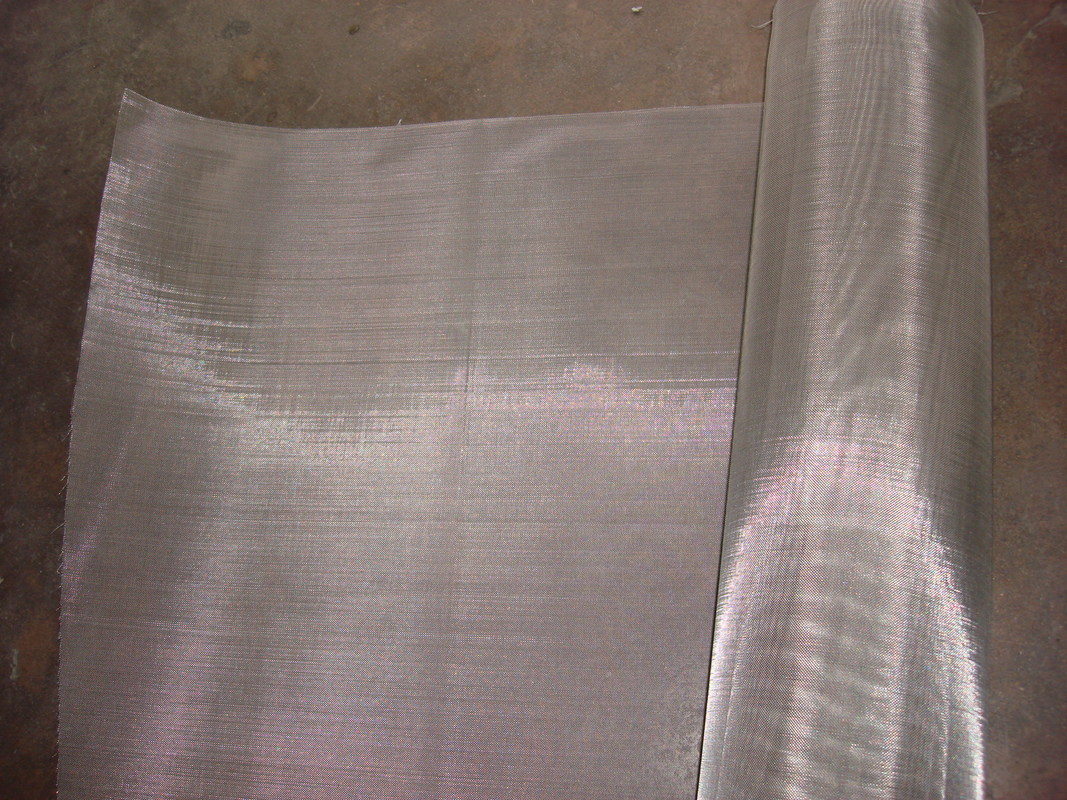

FeCrAl 0Cr21Al6 resistance heating alloy Mesh/Screen
General Description
With the characteristics of high resistance, low temperature coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, as well as the lower price, it is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.
Application
Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
Chemical Composition
|
Alloy
|
Cr%
|
Al%
|
Fe%
|
Re%
|
|
0Cr21Al6
|
19-22
|
5-7
|
Bal.
|
Adequacy
|
Properties
|
Alloy
|
Specific Resistance
(at 20°C)
(µΩ-m)
|
Hardness
HB
|
Linear Expansion Coeff.
(T=20 – 1000°C)
x10-6
|
Maximum Operating
Temperature of Element (°C)
|
|
0Cr21Al6
|
1.42±0.06
|
200-260
|
14.7
|
1250
|
Size Range
|
|
Wire
|
Strip
|
Ribbon
|
Mesh
|
|
Dia (mm)
|
0.025-10
|
-
|
-
|
-
|
|
Width (mm)
|
-
|
5-250
|
0.4-4
|
-
|
|
Thickness (mm)
|
-
|
0.05-2.5
|
>0.05
|
>0.05
|
Want to Know more details about this product
