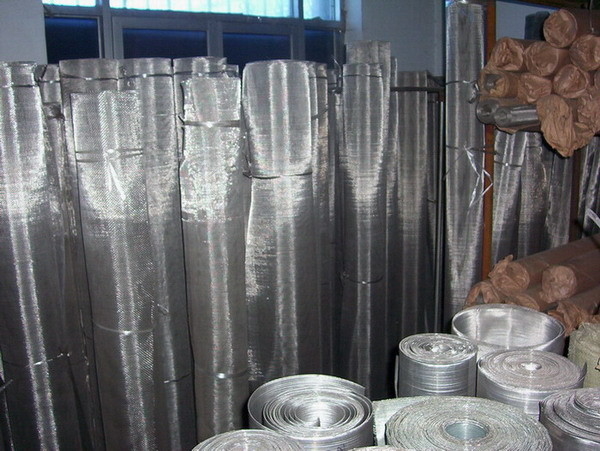

H23YU5T 0Cr23Al5Ti mesh/screen
Product Details:
| Place of Origin: | China |
| Model Number: | H23YU5T 0Cr23Al5Ti mesh/screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Packaging Details: | Seal up, with plastic inside and wooden case or carton outside; |
| Payment Terms: | L/C,T/T,Western Union, paypal |
|
Detail Information |
Product Description
H23YU5T (0Cr23Al5Ti) has characteristics of high resistance, low temperature coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, especially under the atmosphere containing and/or sulfides, as well as the lower price, it is widely used in industrial electric furnaces, household electrical appliances and far infrared ray devices.
Chemical Composition
|
Alloy
|
Chemical Composition
|
|||||||
|
C
|
Si
|
Mn
|
Cr
|
Ni
|
Ti
|
Al
|
Fe
|
|
|
H23YU5T
|
≤ 0.05
|
≤ 0.50
|
≤ 0.30
|
22.0-24.0
|
≤ 0.60
|
0.2-0.5
|
5.00-5.80
|
Bal
|
Properties:
|
Alloy
|
0Cr23Al5Ti
H23YU5T
|
| Yield strength(MPa) |
630-780
|
|
Elongation (%)
|
> 12
|
|
Density g/cm3
|
7.25
|
|
Electrical resistivity (Ωmm2/m)
|
1.35 ± 0.05
|
|
The highest temperature continuous operation (°C)
|
1250
|
|
Melting point (°C)
|
1500
|
|
Thermal conductivity (kJ/m*h*°C)
|
60.2
|
|
Coefficient of linear (α×10-6/°C)
|
15.0
|
