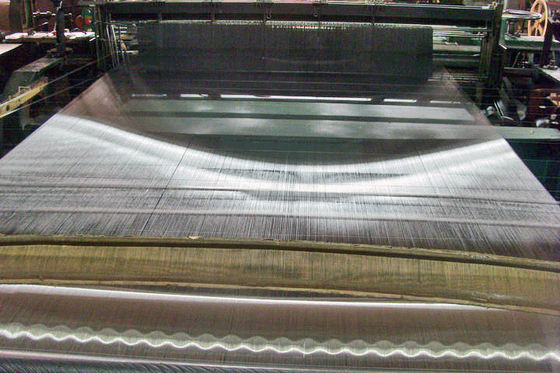

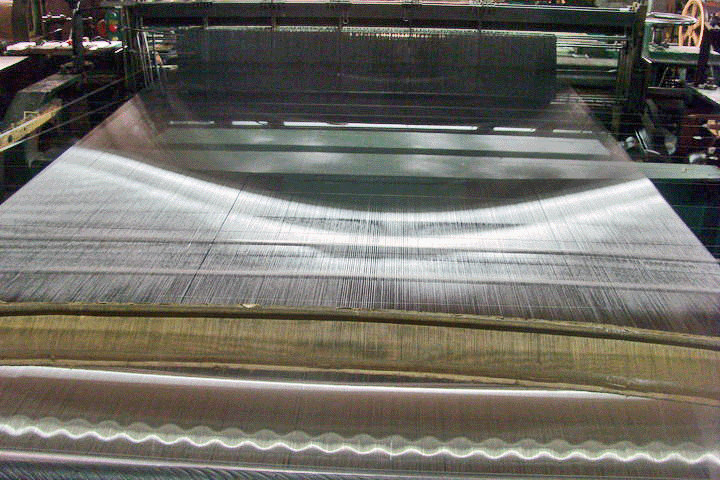

Incoloy 020 Wire Mesh /Screen has excellent corrosion resistance in chemical environments containing sulfuric acidand useful resistance to environments containing chlorides, nitric acid, and phosphoric acid. Other uses include the production of gasoline, solvents, explosives, inorganic and organic chemicals, pharmaceuticals, and food and synthetic materials.
Incoloy 020 Wire Mesh /Screen is readily fabricated to produce mixing tanks, heat exchangers, process piping, pickling equipment, pumps, valves, fasteners and fittings. Applications for alloy 020 Wire Mesh
/Screen requiring resistance to aqueous corrosion are essentially the same as those for Incoloy 825.
To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.
Available specifications :
Mesh: 0.05-250mesh Thickness: Min0.05mm
Chemical composition of Incoloy 020 Wire Mesh / screen :
|
Alloy
|
Ni
|
Cr
|
Fe
|
C
|
Cu
|
Mo
|
Mn
|
Si
|
S
|
|
Incoloy020
|
32.0-38.0
|
19.0-21.0
|
Bal
|
0.07
max
|
3.0-4.0
|
2.0-3.0
|
2.0
max
|
1.0
max
|
0.035
max
|
Mechanical Properties of Incoloy 020 Wire Mesh / Screen:
|
Alloy
|
Tensile Strength
|
Yield Strength(0.2% Offset)
|
Elongation
|
|
Incoloy020
|
90 ksi
|
620 MPa
|
45 ksi
|
300 MPa
|
40%
|
|
|
|
|
|
|
|
Physical Properties of Incoloy 020 Wire Mesh / Screen :
|
Density,
|
0.292 lb/in3
|
|
8.08 g/cm3
|
|
Specific Heat
|
0.12 Btu/lb•°F
|
|
500J/kg•°C
|
|
Electrical Resistivity
.
|
651 ohm•circ mil/ft
|
|
1.08ìÙ•m
|
|
Coefficient of Expansion
|
8.277-212°F, 10-6 in/in•°F
|
|
14.725-100°C, ìm/m•°C
|
Applications:
1.Production of gasoline, solvents, explosives, inorganic and organic chemicals & pharmaceuticals.
2.Food and synthetic materials.
3.Production of mixing tanks, heat exchangers, process piping, pickling equipment, pumps, valves, fasteners and fittings
Mesh's Woven Method
|
Expanded Mesh
|
|
Perforated Mesh
|
|
Twill Weave mesh
|
|
Dutch Twill Weave Cloth
|
|
Dutch Weave Mesh
|
|
Reverse Dutch Weave Cloth
|
|
5-heddle Weave Mesh
|
|
Cross twill weave
|
|
Plain Weaving Mesh
|
Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air: Beijing International Airport OR By sea: Trianjin Seaport
