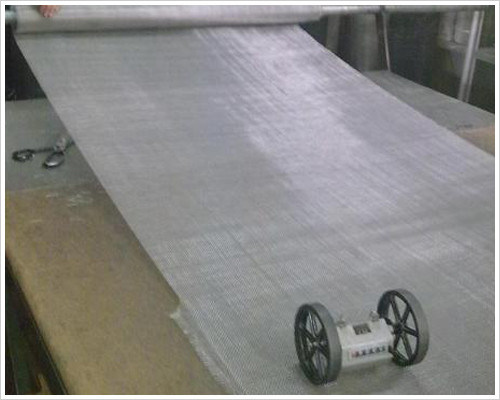

• Inconel 706 Wire Mesh/Screen
Inconel 706 Wire Mesh/Screen

Inconel 706 Wire Mesh/Screen

Product Details:

Place of Origin: China
Brand Name: Changgu
Certification: ISO 9001
Model Number: Inconel 706 Wire Mesh/Screen

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Get Best Price Contact Now

Detail Information

Product Description



   INCONEL   706   WIRE   MESH

Inconel alloy 706 Wire Mesh/Screen is a precipitation-hardenable alloy that provides high mechanical strength in combination with good fabricability. The characteristics of the alloy are similar to those of Inconel alloy 718 except that Inconel alloy 706 Wire Mesh/Screen is more readily fabricated, particularly by machining. The substantial nickel and chromiun contents provide good resistance to oxidation and corrosion. The primary precipitation-hardening constituents of the alloy are columbium and titanium. The aluminum content also contributes to the hardening response. The precipitation-hardening system in Inconel alloy 706 Wire Mesh provides the desirable characteristic of delayed hardening response during exposure to precipitation temperatures. That characteristic gives the alloy excellent resistance to post weld strain-age cracking.

To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.

Limiting chemical composition of Inconel 706 Wire Mesh/Screen:
Element
Min
Max
Carbon
--
0.06
Manganese
--
0.35
Silicon
--
0.35
Phosphorus
--
0.020
Sulfur
--
0.015
Nickel + Cobalt
39.0
44.0
Chromium
14.5
17.5
Cobalt
--
1.00
Iron
Balance
Aluminum
--
0.40
Titanium
1.50
2.00
Boron
--
0.006
Copper
--
0.30
Cb + Ta
2.50
3.30

Physical Properties of Inconel 706 Wire Mesh/Screen:
Quantity
Value
Unit
Thermal expansion
16 - 17
e-6/K
Thermal conductivity
16 - 16
W/m.K
Specific heat
500 - 500
J/kg.K
Melting temperature
1370 - 1400
°C
Service temperature
0 - 500
°C
Density
8000 - 8000
kg/m3
Resistivity
0.7 - 0.7
Ohm.mm2/m

Mechanical Properties of Inconel 706 Wire Mesh/Screen:
Properties
Conditions
T (°C)
Treatment
Density (×1000 kg/m3)
7.7-8.03
25

Poisson's Ratio
0.27-0.30
25

Elastic Modulus (GPa)
190-210
25

Tensile Strength (Mpa)
1158
25
oil quenched, fine grained, tempered at 425°C
Yield Strength (Mpa)
1034
Elongation (%)
15
Reduction in Area (%)
53
Hardness (HB)
335
25
oil quenched, fine grained, tempered at 425°C

Thermal Properties of Inconel 706 Wire Mesh/Screen:
Properties
Conditions
T (°C)
Treatment
Thermal Conductivity (W/m-K)
42.7
100

Specific Heat (J/kg-K)
477
50-100



Expanded Mesh
Perforated Mesh
Twill Weave mesh
Dutch Twill Weave Cloth
Dutch Plain Weave
Dutch Weave Mesh
Reverse Dutch Weave Cloth
5-heddle Weave Mesh
Cross twill weave
Plain Weaving Mesh

Product Description: The product produced by us is of good quality and is priced reasonably.
         Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
        High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.

Packing Process & Transportation:
       Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
        Transportation:     By air:   Beijing International Airport    OR        By sea:   Trianjin Seaport

We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
