Product Details:

Place of Origin: China
Brand Name: Jiechang
Certification: ISO 9001
Model Number: Monel wire mesh

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: FOB Xingang, CIF or CFR
Packaging Details: waterproof paper with plastic cloth,then put into wooden box.
Delivery Time: 15 days
Payment Terms: T/T or L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 square meters per day
Get Best Price Contact Now

Detail Information

Material: Monel 400 And Monel 500 Mesh Count: 2-200mesh
Weave Pattern: Plain Weave, Twill Weave, Dutch Weave Applications: Marine Engineering,chemical And Hydro-carbon Processing Equipment,heat Exchangers,valves,pumps
Packing: Inside The Roll With"paper Tube"to Reduce The Pressure While Loading;then Wrapped With"plastic Film"as Well As The "woven Bag"on The Finished Roll,final Loaded In The Strong Woodencase

Product Description

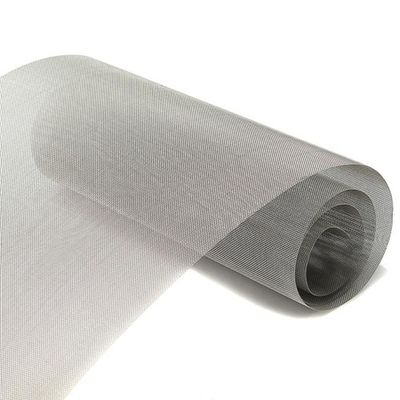

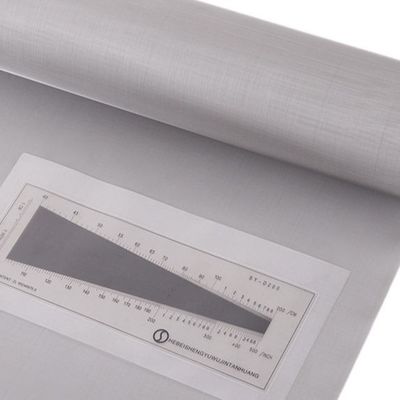

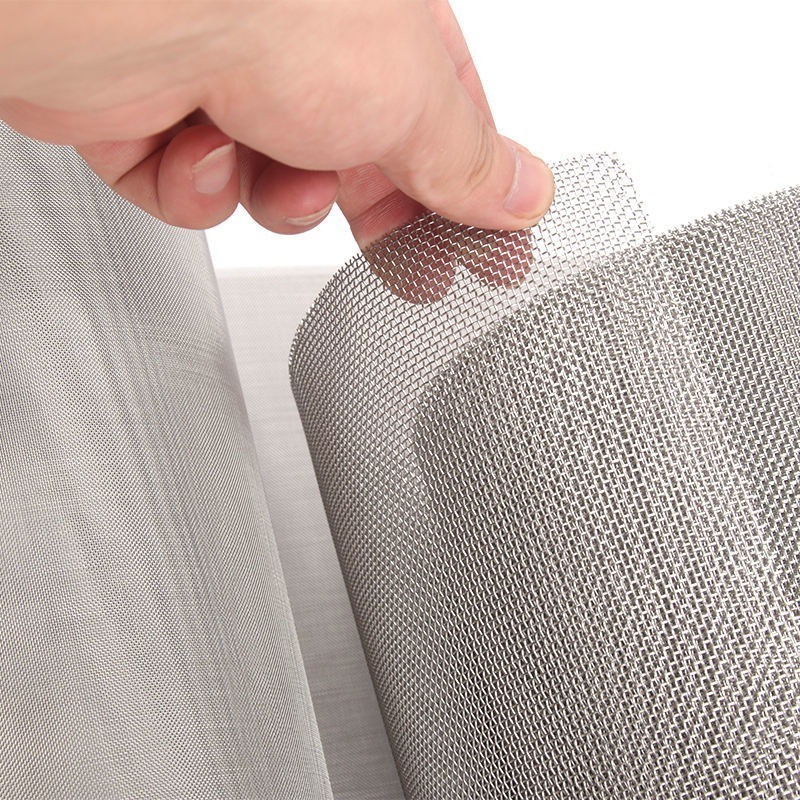

Monel Wire Mesh

We have advanced loom for weaving in monel wire mesh.We can supply other special material wire mesh products,such as: nickel wire mesh(Ni-Cr),monel wire mesh,titanium wire mesh and so on.
Weave Pattern:plain weave, twill weave, dutch weave.
This 400 grade monel is highly resistant to the corrosive action of acids, alkalides and salt water. It has the same strength of mild steel.
Monel Woven Wire Mesh is often used in marine applications such as piping systems and strainer baskets as well as in chemical processing equipment and heat exchangers. Please see below a typical chemical analysis of Monel Woven Wire Mesh.

Packing: waterproof paper with plastic cloth,then put into wooden box.
Monel wire Mesh: 8 mesh to 200 mesh.

The table below shows the most popular specification:



Specification List of Monel Wire Mesh

Mesh/Inch

Wire Dia
mm
d

Mesh
Opening mm
w

Opening Area
A
%

Weight
(kg/sq m)

Mesh /Inch

Wire Dia
mm
d

Mesh Opening
mm
w

Opening Area
A
%

Weight
(kg/sq m)

8

0.710

2.465

60.2%

2.01

30

0.279

0.567

44.8%

1.167

10

0.635

1.905

56.3%

2.02

35

0.330

0.396

29.7%

1.905

12

0.584

1.532

51.8%

2.04

40

0.254

0.381

36%

1.290

14

0.417

1.397

59.0%

1.217

60

0.160

0.263

39%

0.768

16

0.376

1.212

58.0%

1.131

80

0.120

0.198

39%

0.576

18

0.406

1.005

50.7%

1.483

100

0.100

0.154

37%

0.500

20

0.406

0.846

46.2%

1.648

120

0.090

0.122

33%

0.486

24

0.274

0.784

55.0%

0.901

150

0.066

0.103

37.2%

0.326

28

0.234

0.673

55.0%

0.767

200

0.053

0.074

33.6%

0.281

Monel 400 Chemical Composition %



C

Mn

Fe

Cu

Ni

Si

S

Max

Max

Max

Min/Max

Min

Max

Max

0.30

2

2.5

28.0-34.0

63.0

0.5

0.024
