Inconel 722 Wire Mesh/ Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Changgu |
| Certification: | ISO 9001 |
| Model Number: | Inconel 722 Wire Mesh/ Screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Packaging Details: | Seal up, with plastic inside and wooden case or carton outside; |
| Delivery Time: | within 7- 20 days after receiving the advance payment. |
| Payment Terms: | L/C,T/T,Western Union, paypal |
|
Detail Information |
Product Description

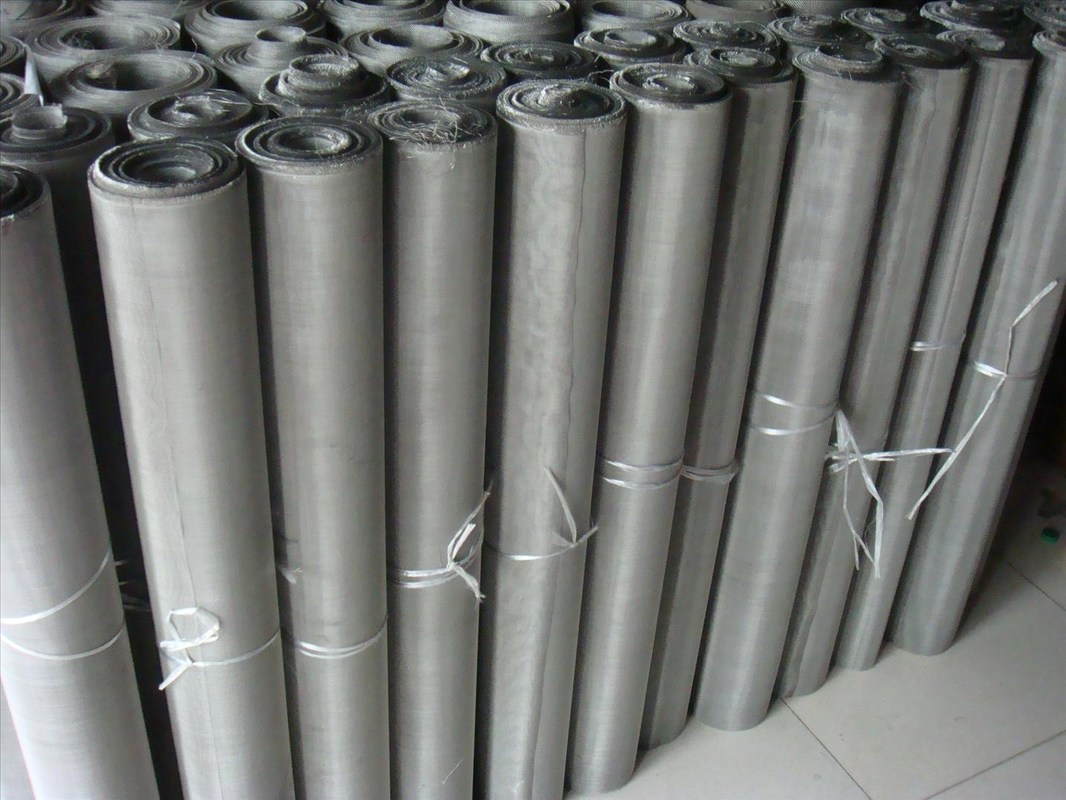

INCONEL 722 WIRE MESH / SCREEN
Inconel 722 Wire Mesh/ Screen is a nickel-chromium alloy that shares many of the same properties as other Inconel alloys. It demonstrates a high level of resistance to various forms of corrosion. It also has the capacity to remain effective at extremely high temperatures. Inconel 722 can withstand the stress caused by several types of acids, which has made it a common metal in the chemical industry.
To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.
Available specifications of Inconel 722 Wire Mesh/Screen:
Mesh: 0.5-250mesh, Thickness:0.05mm above
Inconel 722 Wire Mesh/ Screen Chemical Composition(%) of Inconel 722 Wire Mesh/Screen:
|
Alloy
|
%
|
Ni
|
Cr
|
Fe
|
C
|
Ti
|
Mn
|
Cu
|
Si
|
S
|
|
Inconel 722
|
Min.
|
Balance
|
14.0
|
5.0
|
|
2.0
|
|
|||
|
Max.
|
17.0
|
9.0
|
0.05
|
2.75
|
1.0
|
0.50
|
0.07
|
0.01
|
Inconel 722 Wire Mesh/ Screen Physical Properties of Inconel 722 Wire Mesh/Screen:
| Density (b/cu. in.) | 0.298 |
| Specific Gravity | 7.95 |
| Specific Heat (Btu/lb/°F -[32-212°F]) | 0.105 |
| Electrical Resistivity (microhm-cm (at 68 °F)) | 750 |
| Melting Point (°F) | 2550 |
| Thermal Conductivity | 102 |
| Mean Coeff Thermal Expansion | 5.8 |
| Magnetic Permeability | 1.002 |
| Modulus of Elasticity Tension | 31 |
Applications:
1. Used for gas turbine structural components, such as turbine section frames.
2. The alloy is useful where oxidation resistance and high temperature strength are of major importance
Mesh's Woven Method
Mesh's Woven Method
|
Expanded Mesh
|
|
Perforated Mesh
|
|
Twill Weave mesh
|
|
Dutch Twill Weave Cloth
|
|
Dutch Weave Mesh
|
|
Reverse Dutch Weave Cloth
|
|
5-heddle Weave Mesh
|
|
Cross twill weave
|
|
Plain Weaving Mesh
|
Product Description: The product produced by us is of good quality and is priced reasonably.
Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.
Packing Process & Transportation:
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air: Beijing International Airport OR By sea: Trianjin Seaport
We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
