• Inconel 600 Wire Mesh/ Screen
Inconel 600 Wire Mesh/ Screen

Inconel 600 Wire Mesh/ Screen

Product Details:

Place of Origin: China
Model Number: 0.5-250 mesh

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Get Best Price Contact Now

Detail Information

Product Description

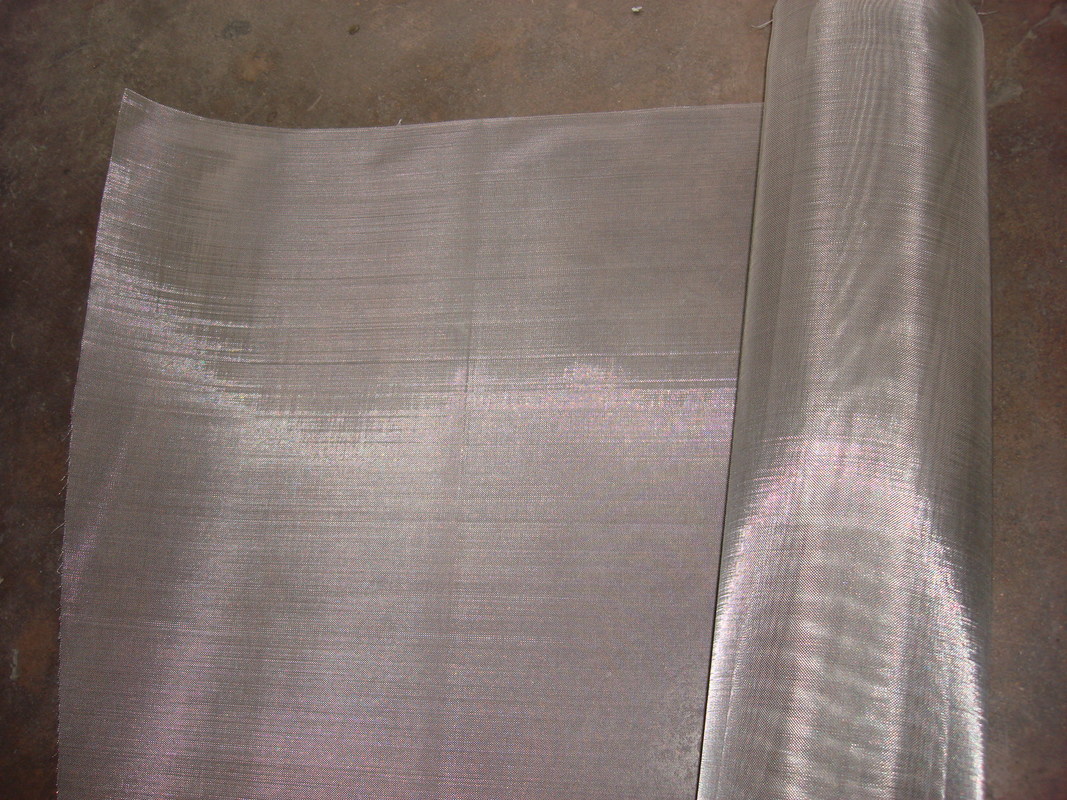

INCONEL    600 WIREMESH / SCREEN

Inconel 600 Wire Mesh/ Screen is a nonmagnetic, nickel-based high temperature alloy possessing an excellent combination of high strength, hot and cold workability, and resistance to ordinary form of corrosion.
This alloy also displays good heat resistance and freedom from aging or stress corrosion throughout the annealed to heavily cold worked condition range.

To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.

Characteristics of Inconel 600 Wire Mesh/ Screen:
1. Resistant to a wide range of corrosive media. The chromium content gives better resistance than Alloy 200 and 201 under oxidizing conditions, at the same time the high nickel gives good resistance to reducing conditions.
    2. Virtually immune to chlorine ion stress corrosion cracking.
    3. Demonstrates adequate resistance to organic acids such as acetic, formic and stearic.
4. Excellent resistance to high purity water used in primary and secondary circuits of pressurized nuclear reactors.
5. Little or no attack occurs at room and elevated temperatures in dry gases, such as chlorine or hydrogen chloride. At temperatures up to 550C in these media, this alloy has been shown to be one of the most resistant of the common alloys.
  6. At elevated temperatures the annealed and solution annealed alloy shows good resistance to scaling and has high strength.
7. The alloy also resists ammonia bearing atmospheres, as well as nitrogen and carburizing gases.

Available specifications of Inconel 600 Wire Mesh/ Screen:
Mesh: 0.5-250mesh, Thickness:0.05mm above

Chemical Composition(%) of Inconel 600 Wire Mesh/ Screen:
Alloy   Ni Cr Fe C Mn S Si
Inconel 600 Max   17.0 10.0 0.15 1.0 0.015 0.5
Min 72.0 14.0 6.0

Mechanical Properties of Inconel 600 Wire Mesh/ Screen:
Item Annealed Cold Worked
Tensile Strength, KSI (Mpa) 90(620) 110(760)
Yield Strength (0.2% Offset), KSI (Mpa) 40(275) 85(585)
Elongation, % 25 10

Physical Properties of Inconel 600 Wire Mesh/ Screen:
Physical Properties
°C
°F
Metric Units
Density
Room
Room
8.43g/cm3
Electrical Resistivity
21
70
1.03 microhm-m
Thermal Conductivity
21
70
14.8 W/mK
Mean Coeff Thermal Expansion
21-93
70-200
13.310-6K-1
Modulus of Elasticity Tension
Room
Room
207 GPa








Applications of Inconel 600 Wire Mesh/ Screen:
1.Thermocouple sheaths.
2.Ethylene dichloride (EDC) cracking tubes.
3.Conversion of uranium dioxide to tetra fluoride in contact with hydrofluoric acid.
4.Production of caustic alkalis particularly in the presence of sulfur compounds.
5.Reactor vessels and heat exchanger tubing used in the production of vinyl chloride.
6.Process equipment used in the production of chlorinated and fluorinated hydrocarbons.
7.In nuclear reactors uses are for such components as control rod inlet stub tubes, reactor vessel components and seals, steam dryers and d separators in boiling water reactors. In pressurized water reactors it is used for control rod guide tubes and steam generator baffle plates etc.
8.Furnace retort seals, fans and fixtures.
9. Roller hearths and radiant tubes, in carbon nitriding processes especially.

Expanded Mesh
Perforated Mesh
Twill Weave mesh
Dutch Twill Weave Cloth
Dutch Weave Mesh
Reverse Dutch Weave Cloth
5-heddle Weave Mesh
Cross twill weave
Plain Weaving Mesh

Product Description: The product produced by us is of good quality and is priced reasonably.
         Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
        High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.

Packing Process & Transportation:
       Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
        Transportation:     By air:   Beijing International Airport    OR        By sea:   Trianjin Seaport

We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).


Want to Know more details about this product
I am interested in Inconel 600 Wire Mesh/ Screen could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
