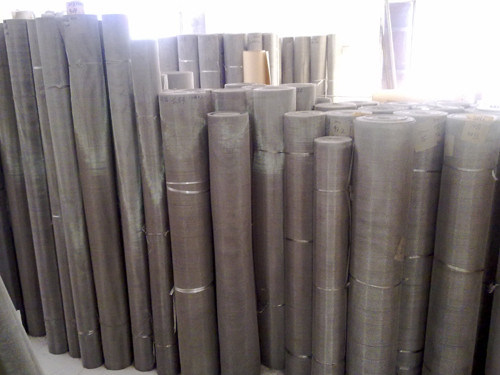

INCONEL 601 MESH / SCREEN
Inconel 601 Mesh / Screen is a solid solution nickel chromium heat resisting alloy which gives outstanding performance at temperatures up to about 1260
℃. Inconel 601 wire has excellent resistance to high temperature oxidation, a general purpose material for applications where heat and corrosion resistance are the primary considerations.
Inconel 601 Mesh / Screen also has excellent corrosion resistance to the mineral acids, similar to Inconel 600. Inconel 601 has good resistance to sodium hydroxide solutions and because of the high nickel content good resistance to chloride stress corrosion cracking. As with austenitic stainless steels Inconel 601 can be sensitized to intergranular corrosion in some aggressive media after heating in the temperature range 540 - 760℃.
To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.
Available specifications:
Mesh: 0.5-250mesh, Thickness:0.05mm above
Chemical Composition(%) of Inconel 601 Wire Mesh/ Screen:
|
Alloy
|
%
|
Ni
|
Cr
|
Fe
|
C
|
Mn
|
Si
|
Cu
|
Al
|
S
|
|
Inconel 601
|
Min.
|
58
|
21
|
Balance
|
|
|
|
|
1
|
|
|
Max.
|
63
|
25
|
0.1
|
1
|
0.5
|
1.0
|
1.7
|
0.015
|
Physical Properties of Inconel 601 Wire Mesh/ Screen:
|
Density (lb / cu. in.) |
0.293 |
|
Specific Gravity |
8.11 |
|
Specific Heat (Btu/lb/°F [32-212°F ]) |
0.107 |
|
Melting Point (°F ) |
2460 |
|
Thermal Conductivity (Btu•in/ft2•h•°F) |
87 |
|
Mean Coeff Thermal Expansion(10-6 in/in•°F) |
7.6 |
|
Modulus of Elasticity Tension(106 KSI) |
29.95 |
Applications of Inconel 601 Wire Mesh/ Screen:
1.Thermal processing equipment - baskets, trays, fixtures, radiant tubes, muffles, retorts, flame shields, woven wire conveyers, burner nozzles and electrical resistance heating wires.
2.Other applications include thermocouple protection tubes, process heaters, condenser tubes, catalyst supports in nitric acid manufacture, exhaust systems in gasoline engines and combustion chambers, superheater tube supports and ash handling in power generation.
Mesh's Woven Method
|
Expanded Mesh
|
|
Perforated Mesh
|
|
Twill Weave mesh
|
|
Dutch Twill Weave Cloth
|
|
Dutch Weave Mesh
|
|
Reverse Dutch Weave Cloth
|
|
5-heddle Weave Mesh
|
|
Cross twill weave
|
|
Plain Weaving Mesh
|
Product Description: The product produced by us is of good quality and is priced reasonably.
Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.
Packing Process & Transportation:
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air: Beijing International Airport OR By sea: Trianjin Seaport
We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
