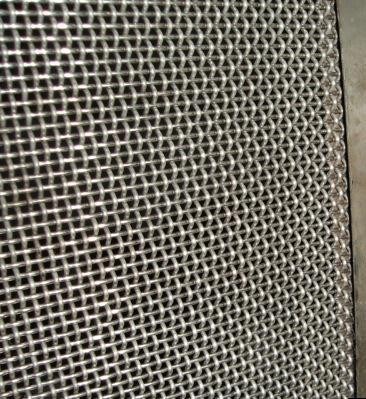

Hastelloy wire mesh/cloth/ screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Changgu |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Payment Terms: | T/T or L/C |
|
Detail Information |
Product Description
Hastelloy wire mesh
We supply hastelloy wire mesh made by Hastelloy Wire C-276,B-2,B3,C-22,etc
Mesh from 2-325mesh,with plain or dutch weave
Uses:This corrosion-resistant super alloys are widely used by the chemical at processing,aerospace,and industrial gas,turbine and marine industries.
|
Hastelloy Wire Mesh |
||
|
Mesh/Inch |
Wire Diameter(mm) |
Aperture(mm) |
|
2 |
1.6 |
11.10 |
|
4 |
0.91 |
5.44 |
|
6 |
0.71 |
3.52 |
|
8 |
0.50 |
2.67 |
|
10 |
0.50 |
2.04 |
|
12 |
0.45 |
1.66 |
|
14 |
0.40 |
1.41 |
|
16 |
0.30 |
1.28 |
|
18 |
0.25 |
1.16 |
|
20 |
0.25 |
1.02 |
|
30 |
0.21 |
0.64 |
|
40 |
0.19 |
0.45 |
|
50 |
0.15 |
0.36 |
|
60 |
0.15 |
0.27 |
|
70 |
0.13 |
0.232 |
|
80 |
0.12 |
0.197 |
|
90 |
0.11 |
0.172 |
|
100 |
0.10 |
0.154 |
|
110 |
0.09 |
0.141 |
|
120 |
0.09 |
0.122 |
|
130 |
0.07 |
0.125 |
|
140 |
0.07 |
0.111 |
|
150 |
0.06 |
0.109 |
|
160 |
0.06 |
0.098 |
|
180 |
0.053 |
0.088 |
|
200 |
0.053 |
0.074 |
Hastelloy B Chemical Composition %
|
C |
Mn |
Fe |
V |
Ni |
Si |
S |
Cr |
P |
Co |
Mo |
|
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Min/Max |
|
0.12 |
1.00 |
6.00 |
0.60 |
Rem |
1.00 |
0.03 |
1.00 |
1.00 |
2.50 |
26.0 - 33.0 |
Hastelloy C22 Chemical Composition %
|
C |
Mn |
Fe |
V |
Ni |
Si |
S |
W |
P |
Co |
Mo |
Cr |
|
Max |
Max |
Min/Max |
Max |
Max |
Max |
Max |
Min/Max |
Max |
Max |
Min/Max |
Min/Max |
|
0.015 |
0.50 |
2.00-6.00 |
0.35 |
Rem |
0.08 |
0.02 |
2.50-3.50 |
0.02 |
2.50 |
12.5 - 14.5 |
20.0 - 14.5 |
Hastelloy C276 Chemical Composition %
|
C |
Mn |
Fe |
V |
Ni |
Si |
S |
W |
P |
Co |
Mo |
Cr |
|
Max |
Max |
Min/Max |
Max |
Max |
Max |
Max |
Min/Max |
Max |
Max |
Min/Max |
Min/Max |
|
0.02 |
1.00 |
4.00-7.00 |
0.35 |
Rem |
0.08 |
0.03 |
3.00-4.50 |
0.03 |
2.50 |
15.0 - 17.0 |
14.5 - 16.5 |
Hastelloy X Chemical Composition %
|
C |
Mn |
Fe |
Sn |
Ni |
Si |
S |
Cr |
P |
Cu |
|
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Max |
|
0.08 |
2.00 |
Rem |
0.025 |
34.0- 37.0 |
0.75 - 1.50 |
0.03 |
17.0- 20.0 |
0.03 |
1.00 |
