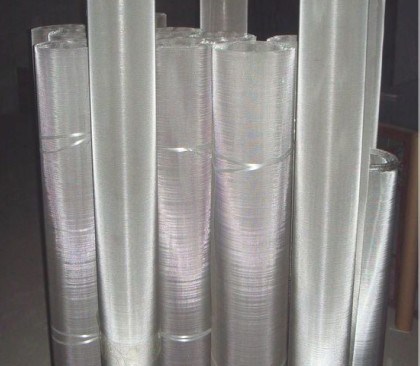

MONEL R405WIRE MESH / SCREEN
Monel R405 Wire Mesh/Screen is the free machining version of Monel 400. It is a nickel-copper alloy with a controlled amount of sulfur added to provide sulfide inclusions that act as chip breakers during machining. Like Monel 400, Monel alloy R-405 Wire Mesh is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions.
Monel R405 Wire Mesh/Screen is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion-resistance, good weld ability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions.
To ensure the quality of our product, we can produce the product with raw materials from the international suppliers. Every batch of product can be tracked to the original raw material supplier. We co-operate with international suppliers like Allvac(ATI), Bohler, Carpenter, Dunkirk, Gloria, OttoKumpu, SMC, ThyssenKrupp VDM, Valbruna, etc.
Limiting Chemical Composition% of Monel R-405 Wire Mesh/Screen:
|
Nickel (plus Cobalt)
|
Carbon
|
Manganese
|
Iron
|
Sulfur
|
Silicon
|
Copper
|
|
63.0 min
|
0.3max.
|
2.0 max
|
2.5 max.
|
0.025-0.060
|
0.5 max.
|
28.0-34.0
|
Monel R-405 Wire Mesh/Screen Physical Constants of Monel R-405 Wire Mesh/Screen
|
Quantity
|
Unit
|
Value
|
|
Density
|
g/cm3
|
8.80
|
|
lb/in.3
|
0.318
|
|
Melting Range
|
°F
|
2370-2460
|
|
°C
|
1300-1350
|
|
Modulus of Elasticity
|
ksi
|
103
|
|
Tension Strength
|
ksi
|
85
|
|
Yield Strength
|
ksi
|
50
|
|
Poisson's Ratio
|
|
0.32
|
|
Curie Temperature
|
°F
|
70-120
|
|
°C
|
.21-49
|
Applications of Monel R-405 Wire Mesh/Screen:
Monel aloy R-405 Wire Meshis chiefly used for automatic-screw-machine stock and it not generally recommended for other applications. Screw machine stock for fasteners and similar high production run items.
1.Meter and valve parts
2.Fasteners
3.Screw machine products
Corrosion Resistant of Monel R-405 Wire Mesh/Screen:
As with alloy 400, Monel R-405 Wire Mesh is virtually immune to chloride ion stress corrosion cracking in typical environments. Generally, its corrosion resistance is very good in reducing environments, but poor in oxidizing conditions. It is not useful in oxidizing acids, such as nitric acid and nitrous. Nevertheless, it is resistant to most alkalis, salts, waters, food products, organic substances and atmospheric conditions at normal and elevated temperatures. Monel 400 and R-405 Wire Mesh offer about the same corrosion resistance as nickel but with higher maximum working pressures and temperatures and at a lower cost due to its superior ability to be machined.
Characteristics of Monel R-405 Wire Mesh/Screen:
1.Good machinability and is recommended for use with automatic screw machines
2.Resistant to seawater and steam at high temperatures
3.Excellent resistance to rapidly flowing brackish water or seawater
4.Excellent resistance to stress corrosion cracking in most freshwaters
5.Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated
6.Offers some resistance to hydrochloric and sulfuric acids a modest temperatures and concentrations, but is seldom the material of choice for these acids
Mechanical Properties of Monel R-405 Wire Mesh/Screen:
|
Condition
|
Tensile (ksi)
|
.2% Yield (ksi)
|
Elongation %
|
Hardness Brinell (3000 kg)
|
Hardness Rockwell B
|
|
Annealed
|
70-85
|
25-40
|
50-35
|
110-140
|
60-76
|
|
Hot-Finished
|
75-90
|
35-60
|
45-30
|
130-170
|
72-86
|
|
Cold-Drawn, As-Drawn
|
85-115
|
50-105
|
35-15
|
160-245
|
85-23C
|
Mesh's Woven Method
|
Expanded Mesh |
|
Perforated Mesh |
|
Twill Weave mesh |
|
Dutch Twill Weave Cloth |
|
Dutch Plain Weave |
|
Dutch Weave Mesh |
|
Reverse Dutch Weave Cloth |
|
5-heddle Weave Mesh |
|
Cross twill weave |
|
Plain Weaving Mesh |
Product Description: The product produced by us is of good quality and is priced reasonably.
Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.
Packing Process & Transportation:
Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
Transportation: By air: Beijing International Airport OR By sea: Trianjin Seaport
We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
