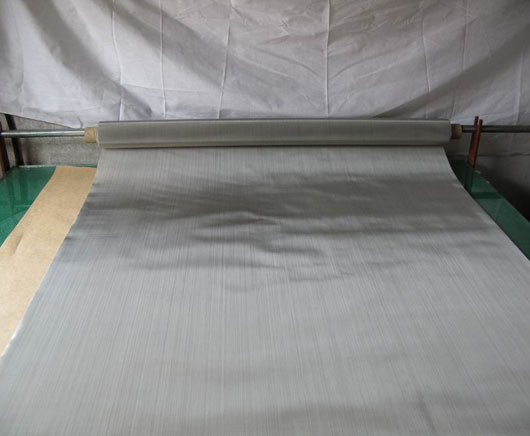

347 Stainless Steel Wire Mesh/Screen
Product Details:
| Place of Origin: | China |
| Model Number: | 347 Stainless Steel Wire Mesh/Screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Packaging Details: | Seal up, with plastic inside and wooden case or carton outside; |
| Delivery Time: | within 7- 20 days after receiving the advance payment. |
| Payment Terms: | L/C,T/T,Western Union, paypal |
|
Detail Information |
Product Description
347 stainless steel wire mesh/screen is variant of the basic austenitic 18/8 Grade 304 with added Columbium – the introduction of Columbium stabilizes the steel and eliminates carbide precipitation which subsequently causes intergranular corrosion. The steel has excellent forming and welding qualities and excellent toughness even at cryogenic temperatures. Both 347/347H wire mesh are used primarily in elevated temperature applications.
347 Stainless Steel wire mesh/screen Properties:
- Higher creep stress and rupture properties when compared with 304
- Ideal for high temperature service
- Overcomes sensitization and intergranular corrosion concerns
- Can be used in elevated temperature applications for ASME Boiler and Pressure Vessel Code applications
- Due to stabilisation the material offers better overall corrosion resistance when compared to 304/304L
- Excellent mechanical properties
- A high carbon version (347H) is also available
347 Stainless Steel Typical Uses
- Heat exchangers
- High temperature steam service
- High temperature chemical process
347 Stainless Steel wire mesh/screen Chemical Composition
347 stainless steel UNS No S34700 | ||||||||
Grade | C | Si | Mn | P | S | Cr | Ni | Other |
347 | 0.08 | 0.75 | 2.00 | 0.045 | 0.030 | 17.00/19.00 | 9.00/13.00 | Cb:10xC1.00 |
347 Stainless Steel wire mesh/screen Mechanical Properties
347 stainless steel UNS No S34700 | |||||
Grade | Proof Stress 0.2% | Tensile Strength | Elongation A5 | Hardness Max | |
HB | HRB | ||||
347 | 205 MPa | 515 MPa | 40% | 201 | 92 |
Wire Mesh/screen Specifications:
Mesh: 0.5-250 mesh/InchThickness: Min0.05mm
