Product Details:

Place of Origin: China
Brand Name: Jiechang
Certification: ISO 9001
Model Number: stainless steel wire mesh

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Delivery Time: within 15 days
Payment Terms: T/T or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 square meters per day
Get Best Price Contact Now

Detail Information
Material: Stailness Steel Wire Hole Shape: Square
Application: Filters,Woven Wire Mesh,mining,Protecting Mesh,Circuit Board Printing Weave Style: Dutch/Plain/Twill Weave
Wire Diameter: 0.018mm-2.5mm Mesh: 1-635mesh

Product Description

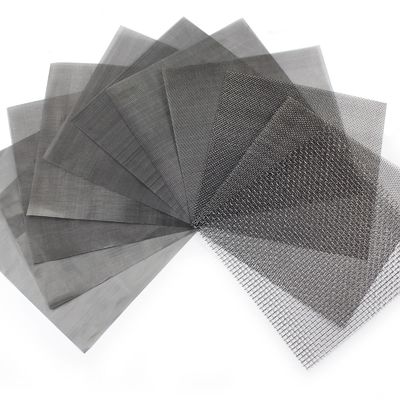

Selvage Edge Stainless Steel Wire Mesh has the excellent resistance to acid, alkali and high temperature, good tensile strength and abrasion resistant, closed edge stainless steel wire mesh are used widely in sieving and filtration in the food industry, also used in petroleum, chemical industry, chemical fiber, rubber, metallurgy, pharmaceutics area.

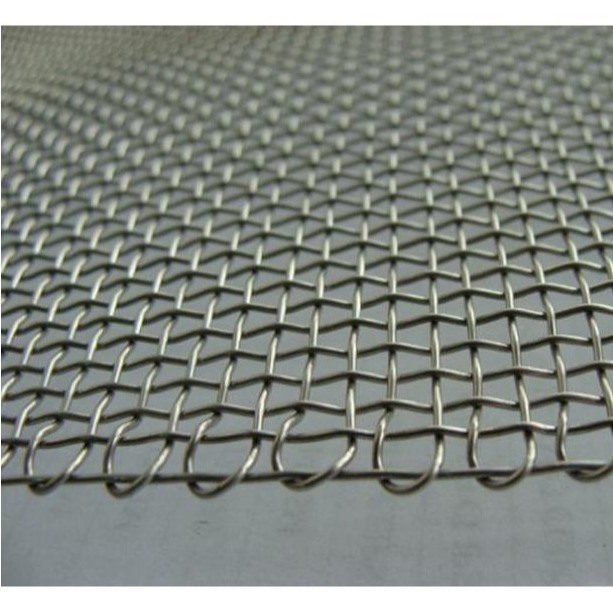

Selvage Edge Stainless Steel Wire Mesh is woven with stainless steel wire, stabilizing the wire mesh and preventing the wire from moving, a loom finished edge that prevents cloth unraveling, we also call it wrapped edge stainless steel wire mesh, closed edge stainless steel wire mesh, material can be stainless steel 304,316,316L,AISI316,430, and so on.



Stainless Steel Wire Mesh (Wire Cloth), Plain Weave

We use choice stainless steel wire in productStainless steel wire mesh with selvage, SELVAGE EDGE STAINLESS STEEL WIRE MESH, closed edge stainless steel mesh screen 0ion of wire mesh (cloth) products. Material for weaving stainless steel wire mesh ( wire cloth ) is divided into Type 304, Type 304 L, Type 316 and Type 316L.

Uses: Typical wire cloth applications include use with chemicals, food products, pharmaceuticals and exposure to moisture.


Specification of Stainless Steel Wire Mesh (Wire Cloth), Plain Weave
mesh/inch wire diameter
mm		 aperture
mm		   mesh/inch wire diameter
mm		 aperture
mm
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.25 0.0385
Electric Welding Net: 0.6m-1.5m

Stainless Steel Wire Mesh( Wire Cloth), Twill Weave

We use choice stainless steel wire in production of wire mesStainless steel wire mesh with selvage, SELVAGE EDGE STAINLESS STEEL WIRE MESH, closed edge stainless steel mesh screen 1h (cloth) products. Material for weaving stainless steel wire mesh ( wire cloth ) is divided into Type 304, Type 304 L, Type 316 and Type 316L.

Uses: Typical wire cloth applications include use with chemicals, food products, pharmaceuticals and exposure to moisture

Specification of Stainless Steel Wire Mesh( Wire Cloth), Twill Weave
Mesh Wire Dia.(mm) Opening(mm) Material(AISI)
250mesh wire dia.0.040mm 0.063 304 or 316
300mesh wire dia.0.040mm 0.044 304 or 316
325mesh wire dia.0.035mm 0.043 304 or 316
350mesh wire dia.0.030mm 0.042 304 or 316
400mesh wire dia.0.030mm 0.033 304 or 316

Stainless Steel Wire Mesh ( Wire Cloth), Dutch Weave

Stainless steel wire mesh with selvage, SELVAGE EDGE STAINLESS STEEL WIRE MESH, closed edge stainless steel mesh screen 2We use choice stainless steel wire in production of wire mesh (cloth) products. Material for weaving stainless steel wire mesh ( wire cloth ) is divided into Type 304, Type 304 L, Type 316 and Type 316L.

Uses: Typical wire cloth applications include use with chemicals, food products, pharmaceuticals and exposure to moisture.

Specification of Stainless Steel Wire Mesh ( Wire Cloth), Dutch Weave
Mesh x Mesh Wire Dia.x Wire Dia. Material
24mesh x 110mesh 0.35mm wire dia.x 0.25mm wire dia. AISI 304/316
30mesh x 150mesh 0.23mm wire dia.x 0.18mm wire dia. AISI 304/316
50mesh x 600mesh 0.18mm wire dia.x 0.11mm wire dia. AISI 304/316
20mesh x 200mesh 0.75mm wire dia.x0.21mm wire dia. AISI 304/316
50mesh x 250mesh 0.14mm wire dia.x 0.11mm wire dia. AISI 304/316
20mesh x 250mesh 0.25mm wire dia.x 0.20mm wire dia. AISI 304/316
30mesh x 360mesh 0.23mm wire dia. x 0.15mm wire dia. AISI 304/316
12mesh x 120mesh 0.35mm wire dia. x 0.224mm wire dia. AISI 304/316
20mesh x 80mesh 0.45mm wire dia. x 0.35mm wire dia. AISI 304/316
80mesh x 700mesh 0.06mm wire dia. x 0.05mm wire dia. AISI 304/316
165mesh x 800mesh 0.071mm wire dia.x 0.045mm wire dia. AISI 304/316
165mesh x 1400mesh 0.071mm wire dia.x0.04mm wire dia. AISI 304/316
200mesh x 1800mesh 0.05mm wire dia.x0.032mm wire dia. AISI 304/316



Stainless steel wire mesh with selvage, SELVAGE EDGE STAINLESS STEEL WIRE MESH, closed edge stainless steel mesh screen 3
