Stainless Steel Wire Mesh Square Opening,304 316 316L Stainless steel hardware cloth filter mesh woven stainless steel
Product Details:
| Place of Origin: | China |
| Brand Name: | Jiechang |
| Certification: | ISO 9001 |
| Model Number: | stainless steel wire mesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Delivery Time: | within 15 days |
| Payment Terms: | T/T or L/C, D/P, D/A, Western Union, MoneyGram |
| Supply Ability: | 1000 square meters per day |
|
Detail Information |
|||
| Material: | Stainless Steel Wire | Type: | Weave Wire Mesh |
|---|---|---|---|
| Technique: | Woven | Application: | Filters,Woven Wire Mesh,mining,Protecting Mesh,Circuit Board Printing |
| Weave Style: | Dutch/Plain/Twill Weave | Feature: | Acid-resisting,corrosion Resistent Etc.,Anti-corrosion,alkali Resist,alkali-resisting Etc |
| Mesh: | 1-635mesh | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
Product Description

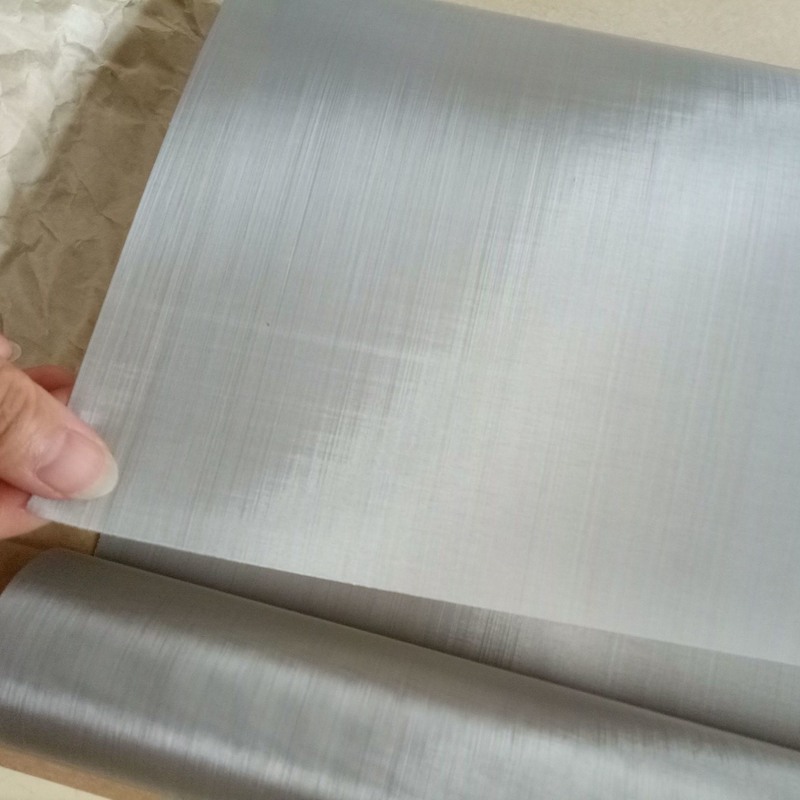

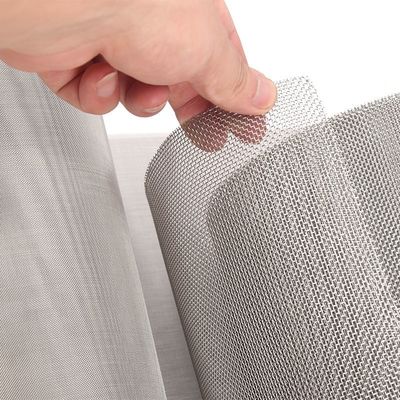

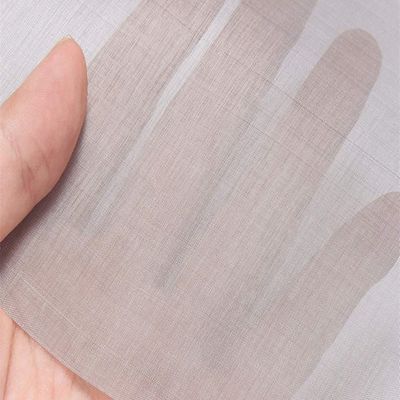

Stainless Steel Wire Mesh Square Opening
Our company is the major manufacturer of stainless steel wire mesh of China, especially known as its best quality and excellent reputation. Stainless steel wire mesh square opening is in contrast with stainless steel wire mesh Dutch woven.
Varieties of Stainless Steel Wire Mesh Square Opening:
Stainless Steel Square Wire Mesh produced by us is classified into two types according to the weaving patterns:
Stainless steel square wire mesh plain woven
Stainless steel square wire mesh twill woven
Stainless Steel Wire Mesh Plain weave is the most commonly used weave. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave Stainless Steel Wire Mesh is made by each weft wire passing alternately over two, and then under two successive warp wires and each warp wire passing alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
Stainless Steel Square Wire Mesh Varieties according to materials:
Stainless steel square wire mesh type 304
Stainless steel square wire mesh type 304L
Stainless steel square wire mesh type 316
Stainless steel square wire mesh type 316L
Stainless Steel Square Wire Mesh Uses: Stainless steel wire mesh and stainless steel wire cloth products are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy etc. Special size and specification are available according to customers' requirement.
Stainless Steel Square Wire Mesh Sizes:
Standard roll width of stainless steel square wire mesh: 1m to 48".
Standard roll length of stainless steel square wire mesh: 30m to 100.
|
Mesh/Inch |
Wire Diameter |
Aperture |
Open Area |
Weight (LB) /100 Square Foot |
||
|
Inch |
MM |
Inch |
MM |
|||
|
1x1 |
.080 |
2.03 |
.920 |
23.37 |
84.6 |
41.1 |
|
2X2 |
.063 |
1.60 |
.437 |
11.10 |
76.4 |
51.2 |
|
3X3 |
.054 |
1.37 |
.279 |
7.09 |
70.1 |
56.7 |
|
4X4 |
.063 |
1.60 |
.187 |
4.75 |
56.0 |
104.8 |
|
4X4 |
.047 |
1.19 |
.203 |
5.16 |
65.9 |
57.6 |
|
5X5 |
.041 |
1.04 |
.159 |
4.04 |
63.2 |
54.9 |
|
6X6 |
.035 |
.89 |
.132 |
3.35 |
62.7 |
48.1 |
|
8X8 |
.028 |
.71 |
.097 |
2.46 |
60.2 |
41.1 |
|
10X10 |
.025 |
.64 |
.075 |
1.91 |
56.3 |
41.2 |
|
10X10 |
.020 |
.51 |
.080 |
2.03 |
64.0 |
26.1 |
|
12X12 |
.023 |
.584 |
.060 |
1.52 |
51.8 |
42.2 |
|
12X12 |
.020 |
.508 |
.063 |
1.60 |
57.2 |
31.6 |
|
14X14 |
.023 |
.584 |
.048 |
1.22 |
45.2 |
49.8 |
|
14X14 |
.020 |
.508 |
.051 |
1.30 |
51.0 |
37.2 |
|
16X16 |
.018 |
.457 |
.0445 |
1.13 |
50.7 |
34.5 |
|
18X18 |
.017 |
.432 |
.0386 |
.98 |
48.3 |
34.8 |
|
20X20 |
.020 |
.508 |
.0300 |
.76 |
36.0 |
55.2 |
|
20X20 |
.016 |
.406 |
.0340 |
.86 |
46.2 |
34.4 |
|
24X24 |
.014 |
.356 |
.0277 |
.70 |
44.2 |
31.8 |
|
30X30 |
.013 |
.330 |
.0203 |
.52 |
37.1 |
34.8 |
|
30X30 |
.012 |
.305 |
.0213 |
.54 |
40.8 |
29.4 |
|
30X30 |
.009 |
.229 |
.0243 |
.62 |
53.1 |
16.1 |
|
35X35 |
.011 |
.279 |
.0176 |
.45 |
37.9 |
29.0 |
|
40X40 |
.010 |
.254 |
.0150 |
.38 |
36.0 |
27.6 |
|
50X50 |
.009 |
.229 |
.0110 |
.28 |
30.3 |
28.4 |
|
50X50 |
.008 |
.203 |
.0120 |
.31 |
36.0 |
22.1 |
|
60X60 |
.0075 |
.191 |
.0092 |
.23 |
30.5 |
23.7 |
|
60X60 |
.007 |
.178 |
.0097 |
.25 |
33.9 |
20.4 |
|
70X70 |
.0065 |
.165 |
.0078 |
.20 |
29.8 |
20.8 |
|
80X80 |
.0065 |
.165 |
.0060 |
.15 |
23.0 |
23.2 |
|
80X80 |
.0055 |
.140 |
.0070 |
.18 |
31.4 |
16.9 |
|
90X90 |
.005 |
.127 |
.0061 |
.16 |
30.1 |
15.8 |
|
100X100 |
.0045 |
.114 |
.0055 |
.14 |
30.3 |
14.2 |
|
100X100 |
.004 |
.102 |
.0060 |
.15 |
36.0 |
11.0 |
|
100X100 |
.0035 |
.089 |
.0065 |
.17 |
42.3 |
8.3 |
|
110X110 |
.0040 |
.1016 |
.0051 |
.1295 |
30.7 |
12.4 |
|
120X120 |
.0037 |
.0940 |
.0064 |
.1168 |
30.7 |
11.6 |
|
150X150 |
.0026 |
.0660 |
.0041 |
.1041 |
37.4 |
7.1 |
|
160X160 |
.0025 |
.0635 |
.0038 |
.0965 |
36.4 |
5.94 |
|
180X180 |
.0023 |
.0584 |
.0033 |
.0838 |
34.7 |
6.7 |
|
200X200 |
.0021 |
.0533 |
.0029 |
.0737 |
33.6 |
6.2 |
|
250X250 |
.0016 |
.0406 |
.0024 |
.0610 |
36.0 |
4.4 |
|
270X270 |
.0016 |
.0406 |
.0021 |
.0533 |
32.2 |
4.7 |
|
300X300 |
.0051 |
.0381 |
.0018 |
.0457 |
29.7 |
3.04 |
|
325X325 |
.0014 |
.0356 |
.0017 |
.0432 |
30.0 |
4.40 |
|
400X400 |
.0010 |
.0254 |
.0015 |
.370 |
36.0 |
3.3 |
|
500X500 |
.0010 |
.0254 |
.0010 |
.0254 |
25.0 |
3.8 |
|
635X635 |
.0008 |
.0203 |
.0008 |
.0203 |
25.0 |
2.63 |
