Place of Origin: | China |
Brand Name: | Changu |
Certification: | ISO 9001 |
Minimum Order Quantity: | 5 square meters |
---|---|
Delivery Time: | within 15 days |
Payment Terms: | T/T or L/C |
Supply Ability: | 1000 square meters per day |
Mesh Size: | 6mesh To 200 Mesh/inch | Material: | Brass Wire |
---|---|---|---|
Application: | Filter | Type: | Woven |

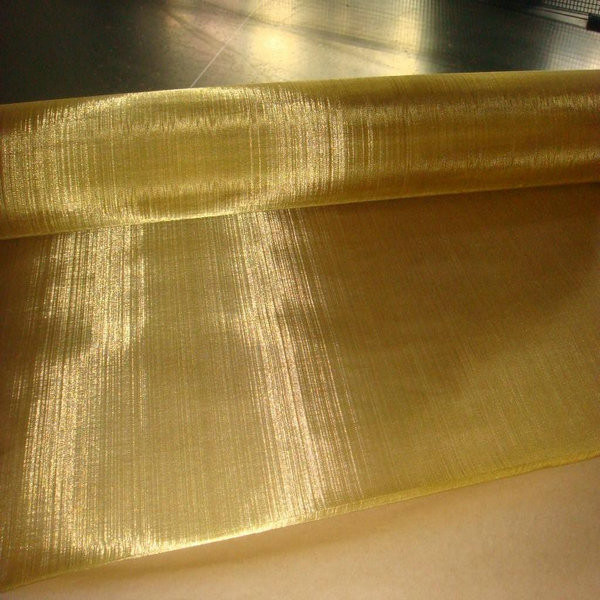

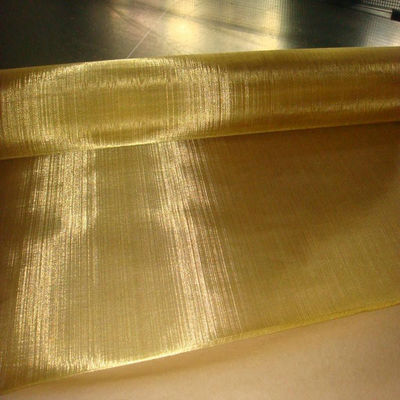

Brass mesh is woven by Brass wire, phosphor bronze wire, or copper wire. It is used for separation and sifting kinds pellet, grain, porcelain earth and glass, chinaware printing and filter liquid.
Brass mesh specifications:
Brass mesh 6 mesh/inch-200 mesh/inch; copper wire cloth 10mesh/inch-60mesh/inch; phosphor bronze wire cloth 120mesh/inch - 360mesh/inch.
Wire diameter: 0.051 mm - 0.711 mm
Mesh opening: 0.076 mm - 3.522 mm
Width: 0.914M, 1M, 1.5M.
Length/roll: 30M
Weaving methods:Plain weave, twill weave or Dutch weave.
Brass mesh specification list:
mesh | Wire Dia. (MM) | Opening (mm) | ||
SWG | mm | inch | ||
6mesh | 22 | 0.711 | 0.028 | 3.522 |
8mesh | 23 | 0.610 | 0.024 | 2.565 |
10mesh | 25 | 0.508 | 0.020 | 2.032 |
12mesh | 26 | 0.457 | 0.018 | 1.660 |
14mesh | 27 | 0.417 | 0.016 | 1.397 |
16mesh | 29 | 0.345 | 0.014 | 1.243 |
18mesh | 30 | 0.315 | 0.012 | 1.096 |
20mesh | 30 | 0.315 | 0.0124 | 0.955 |
22mesh | 30 | 0.315 | 0.0124 | 0.840 |
24mesh | 30 | 0.315 | 0.0124 | 0.743 |
26mesh | 31 | 0.295 | 0.0116 | 0.682 |
28mesh | 31 | 0.295 | 0.0116 | 0.612 |
30mesh | 32 | 0.247 | 0.011 | 0.573 |
32mesh | 33 | 0.254 | 0.010 | 0.540 |
34mesh | 34 | 0.234 | 0.0092 | 0.513 |
36mesh | 34 | 0.234 | 0.0092 | 0.472 |
38mesh | 35 | 0.213 | 0.0084 | 0.455 |
40mesh | 36 | 0.193 | 0.0076 | 0.442 |
42mesh | 36 | 0.193 | 0.0076 | 0.412 |
44mesh | 37 | 0.173 | 0.0068 | 0.404 |
46mesh | 37 | 0.173 | 0.0068 | 0.379 |
48mesh | 37 | 0.173 | 0.0068 | 0.356 |
50mesh | 37 | 0.173 | 0.0068 | 0.335 |
60X50mesh | 36 | 0.193 | 0.0076 | - |
60X50mesh | 37 | 0.173 | 0.0068 | - |
60mesh | 37 | 0.173 | 0.0068 | 0.250 |
70mesh | 39 | 0.132 | 0.0052 | 0.231 |
80mesh | 40 | 0.122 | 0.0048 | 0.196 |
90mesh | 41 | 0.112 | 0.0044 | 0.170 |
100mesh | 42 | 0.012 | 0.004 | 0.152 |
120X108mesh | 43 | 0.091 | 0.0036 | - |
120mesh | 44 | 0.081 | 0.0032 | 0.131 |
140mesh | 46 | 0.061 | 0.0024 | 0.120 |
150mesh | 46 | 0.061 | 0.0024 | 0.108 |
160mesh | 46 | 0.061 | 0.0024 | 0.098 |
180mesh | 47 | 0.051 | 0.002 | 0.090 |
200mesh | 47 | 0.051 | 0.002 |
0.076 |
