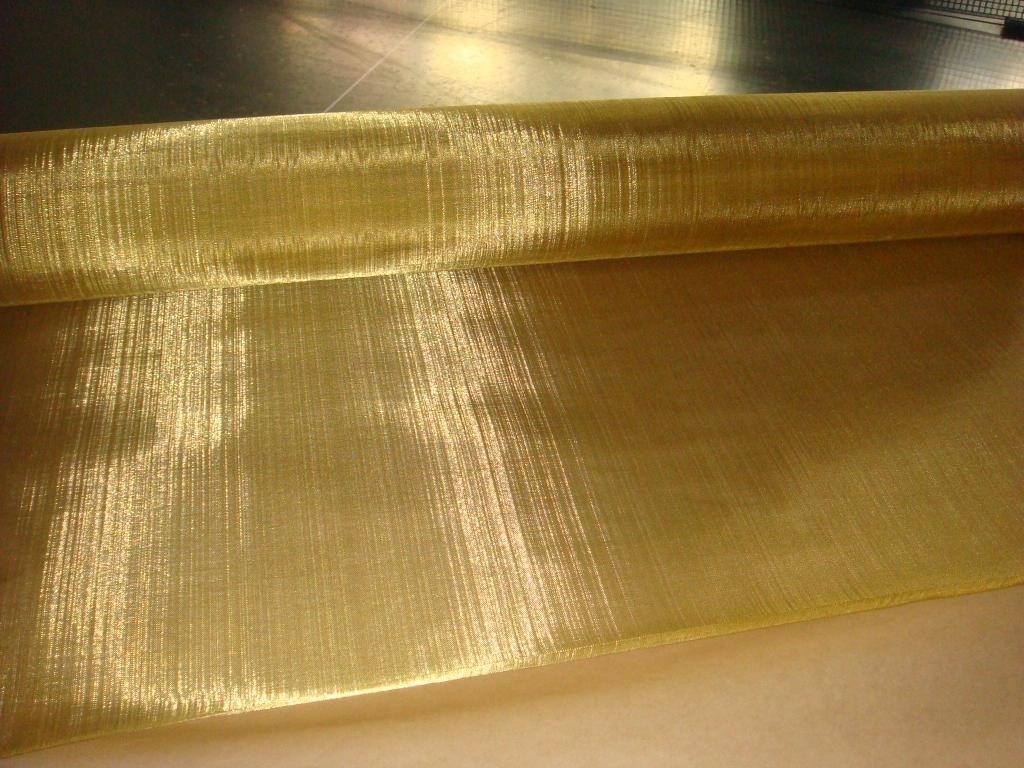

Brass Wire Mesh
Product Details:
| Place of Origin: | China |
| Brand Name: | Changgu |
Payment & Shipping Terms:
| Packaging Details: | standard export packing |
|---|---|
| Delivery Time: | 20 days |
| Payment Terms: | T/T or L/C |
|
Detail Information |
|||
| Mesh Size: | 1mesh/inch-200mesh/inch | Material: | Brass Wire |
|---|---|---|---|
| Application: | Filter | Type: | Woven |
Product Description
Brass wire mesh is an alloy of copper and zinc, offers much better abrasion resistance, better corrosion resistance and lower electrical conductivity as compared with copper mesh.Brass wire mesh and phosphor bronze wire mesh are extensively used for sieving diversified pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas.
Material: Brass wire, phosphor bronze wire, or red copper wire
Application: Separation and sifting kinds pellet, grain,porcelain earth and glass, chinaware printing, filter liquid, etc.
Specifications:brass wire cloth 1mesh/inch-200mesh/inch; copper wire cloth 1mesh/inch-80mesh/inch; phosphor bronze wire cloth 1mesh-400mesh/inch
Width:0.914M, 1M, 1.5M
Length/roll:30M or 100ft
Weaving methods: Plain weave, twill weave or Dutch weave.
| Brass wire mesh H65 H80 | ||
| Mesh/Inch |
Wire Diameter(mm) |
Aperture(mm) |
| 2 | 1.6 | 11.10 |
| 4 | 0.91 | 5.44 |
| 6 | 0.71 | 3.52 |
| 8 | 0.50 | 2.67 |
| 10 | 0.50 | 2.04 |
| 12 | 0.45 | 1.66 |
| 14 | 0.40 | 1.41 |
| 16 | 0.30 | 1.28 |
| 18 | 0.25 | 1.16 |
| 20 | 0.25 | 1.02 |
| 30 | 0.21 | 0.64 |
| 40 | 0.19 | 0.45 |
| 50 | 0.15 | 0.36 |
| 60 | 0.15 | 0.27 |
| 70 | 0.13 | 0.232 |
| 80 | 0.12 | 0.197 |
| 90 | 0.11 | 0.172 |
| 100 | 0.10 | 0.154 |
| 110 | 0.09 | 0.141 |
| 120 | 0.09 | 0.122 |
| 130 | 0.07 | 0.125 |
| 140 | 0.07 | 0.111 |
| 150 | 0.06 | 0.109 |
| 160 | 0.06 | 0.098 |
| 180 | 0.053 | 0.088 |
| 200 | 0.053 | 0.074 |
| 220 | 0.05 | 0.065 |
| (width):0.60m-2.9m | ||
