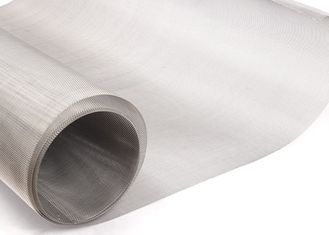

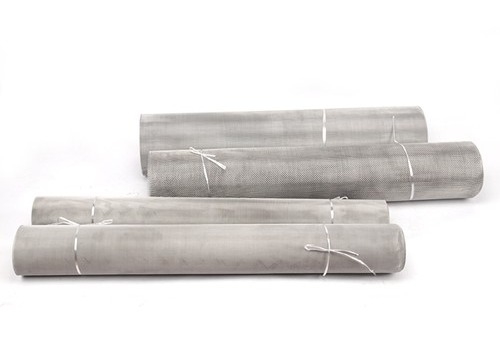

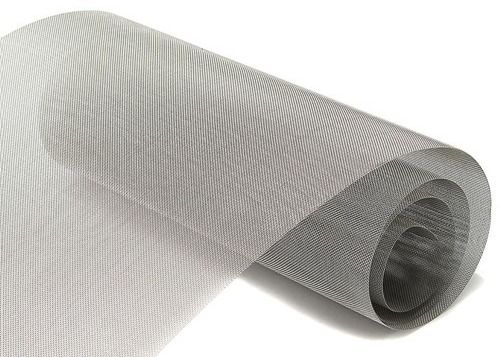

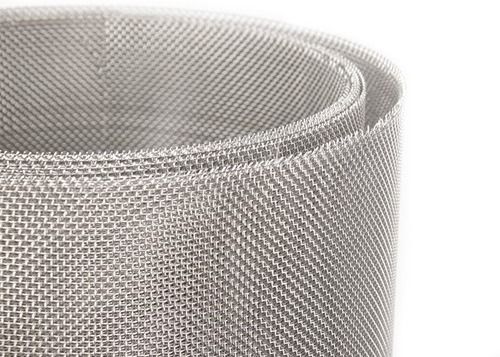

Stainless Steel Wire Mesh (304 316 316L)
Product Details:
| Place of Origin: | China |
| Brand Name: | Jiechang |
| Model Number: | Stainless Steel Wire Mesh (304 316 316L) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Packaging Details: | Paper tube inside, plastic bag outside, then wooden box |
| Payment Terms: | Western Union, T/T, L/C |
|
Detail Information |
|||
| Material: | Stainless Steel Wire,304,316,SUS Stainless Steel | Weave Style: | Plain Weave,twill Weave,Plain/Twill Weave,Dutch/Plain/Twill Weave,twill Or Dutch |
|---|---|---|---|
| Wire Diameter: | Requirement,0.1-5MM,0.02-2mm,0.018mm-2.5mm,BWG33-BWG16 | Width: | Usually1M,0.5m-3m Or Customized |
| Length: | 30m/roll 50m/roll Or As Required | Mesh: | 1-3200mesh,3-500 MESH,1-635mesh |
| Packing: | Paper Tube Inside+ Wodden Box +plastic Bag +,waterproof Paper,Wooden Carton,plastic Film,pallet | ||
Product Description
304 316 316L stainless steel wire mesh is also called stainless steel screen mesh, stainless steel wire cloth, stainless steel mesh screen, and stainless steel filter mesh.
Stainless Steel Wire Mesh Feature:
* Corrosion resistance
* Anti-acid and alkali
* Anti-high temperature
* Good filter performance
* Long using life
Stainless steel wire mesh has heat resistance, acid resistance, corrosion resistance, and wear resistance characters. The main materials are 304 stainless steel wire mesh, 316 stainless steel wire mesh, 310 stainless steel wire mesh, 904L stainless steel wire mesh, 430 stainless steel wire mesh, and other stainless steel grade. The most popular ones are 304 stainless steel wire mesh and 316 stainless steel wire mesh, which can be used in most application environments and are not expensive. And some special materials are used to meet the high requirements of the use environment, such as Inconel wire mesh, Monel Wire Mesh, Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.
| Product Name | Woven Wire Mesh, Wire Cloth |
| Stainless Steel Grade | 304, 304L, 316, 316L, 310s, 904L, 430, etc |
| Special Material Options | Inconel, Monel, Nickel, Titanium, etc |
| Wire Diameter Range | 0.02 - 6.30mm |
| Hole Size Range | 1 - 3500mesh |
| Weave Types | Plain Weave Twill Weave Dutch or 'Hollander' Weave Plain Dutch Weave Twill Dutch Weave Reverse Dutch Weave Multiplex Weave |
| Mesh Width | Standard less than 2000 mm |
| Mesh Length | 30m rolls or cut to length, minimum 2m |
| Mesh Type | Rolls and sheets are available |
| Production Standards | ASTM E2016 - 20 |
stainless steel wire mesh is widely used in mining, chemical industry,food, petroleum, medicine, mainly used for gas, liquid filtration, and other media separation.
Stainless steel mesh screen is also used for screening and filtration under acid and alkali environment conditions, as mud mesh in the petroleum industry, and chemical fiber industry.
For other industries, our stainless steel deep processed products are used in hospitals, pasta, outside barbecues, flower baskets, fruit baskets, coffee filters, beer filters, etc.
Through deep processing and polishing of stainless steel wire mesh, to produce the stainless steel wire mesh filters, filter discs, mesh baskets and etc.
Quality Control
About stainless steel mesh screen quality. The most important details are: material, aperture and wire diameter.
We have strictly inspection to control the quality.
Advantages
- Stable foreign trade team and skilled workers.
- 30-year's Stainless steel wire mesh manufacturing experience.
- 20-year's Stainless steel wire mesh trade to the world exporting experience.
- Professional Stainless steel wire mesh manufacturer in Hebei, China.
- Stable delivery time,fine quality,good price & sincere service.
- We are the Real factory
