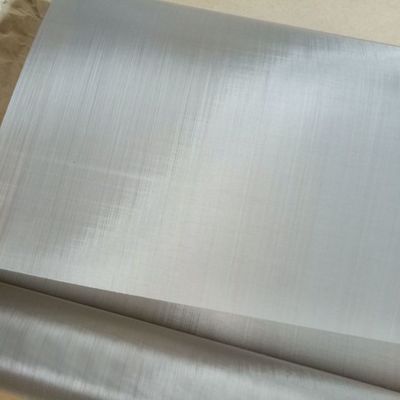

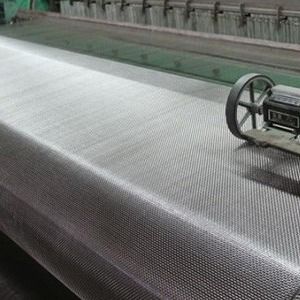

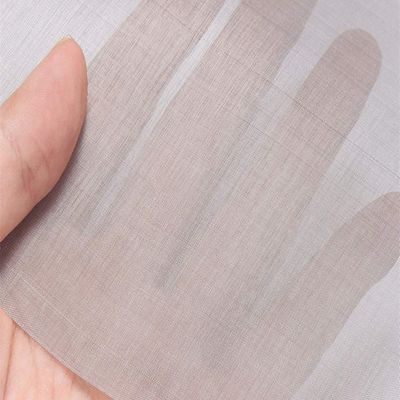

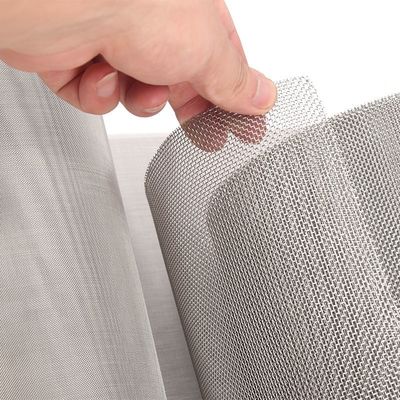

S32205 Duplex Stainless Steel Wire Mesh/Screen 2205 2507 UNS S31803 UNS S32205 super duplex stainless steel wire mesh

S32205 Duplex Stainless Steel Wire Mesh/Screen 2205 2507 UNS S31803 UNS S32205 super duplex stainless steel wire mesh

Product Details:

Place of Origin: China
Brand Name: Jiechang
Certification: ISO 9001
Model Number: S32205 Duplex Stainless Steel Wire Mesh/Screen

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal, D/A, D/P, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Material: Stainless Steel Wire Duplex 2205/2507 Wire Diameter:: 0.0183mm-2.03mm
Mesh: Mesh 10 To Mesh 300 Application: Filters,Woven Wire Mesh,mining,Protecting Mesh,Circuit Board Printing
Packing: Paper Tube Inside+ Wodden Box +plastic Bag +

Product Description



Product Name:

Duplex 2205/2507 wire mesh/ Duplex 2205/2507 welded mesh/Duplex 2205/2507 wire mesh fence/Duplex 2205/2507 fencing wire mesh/Duplex 2205/2507 welding wire mesh/Duplex 2205 /2507 mesh sheet/Duplex 2205/2507 tie wire/ Duplex 2205/2507 spring wire/ Duplex 2205/2507 welded wire mesh rolls/Duplex 2205/2507 plain dutch weave/Duplex 2205/2507 reverse twill dutch weave/Duplex 2205/2507 woven stainless steel mesh



S32205 duplex stainless steel wire mesh/screen is the most widely used duplex (ferritic/austenitic) stainless steel grade. It finds applications due to both excellent corrosion resistance and high strength. The standard duplex S31803 composition has over the years been refined by many steel suppliers, and the resulting restricted composition range was endorsed as UNS S32205 in 1996. Duplex S32205 gives better guaranteed corrosion resistance, but for much of the Duplex S31803 currently produced also complies with Duplex S32205. 2205 is not generally suitable for use at temperatures above 300ºC as it suffers from precipitation of brittle micro-constituents, nor below -50ºC because of its ductile-to-brittle-transition.
Duplex Applications
Chemical processing, transport and storage,
Oil and Gas exploration and processing equipment,
Marine and other high chloride environments,
Pulp and paper digesters, liquor tanks and paper machines.
Duplex Corrosion Resistance
Excellent general corrosion resistance; superior to Grade 316 in most environments. Excellent resistance to localized corrosion including intergranular, pitting and crevice corrosion; the CPT of 2205 is generally at least 35ºC. The grade is also resistant to chloride stress corrosion cracking (SCC) at temperatures of up to about 150ºC. Grade 2205 will often perform well in environments which cause premature failure of austenitic grades. It has better resistance to sea water then Grade 316.
Duplex Heat Resistance
Although 2205 has good high temperature oxidation resistance, this grade - like other duplex stainless steels - suffers from embrittlement if held for even short times at temperatures above 300ºC. If embrittled, this can only be rectified by a full solution annealing treatment. Duplex stainless steels are almost never used above 300ºC.

UNS
C
Cr
Mn
Mo
N
Ni
P
S
Si
Fe
S31803
Min
--
21.0
--
2.5
0.08
4.5
--
--
--
Bal
Max
0.30
23.0
2.0
3.5
0.2
6.5
0.03
0.02
1.0
S32205
Min

22.0
--
3.0
0.14
4.5
--
--
--
Max
0.30
23.0
2.0
3.5
0.2
6.5
0.03
0.02
1.0
UNS
Min.Tensile(KSI)
Min.Yield (KSI)
Elongation %
S31803
90
65
25
S32205
90
65
25

Wire Mesh Specifications:
Mesh
: 0.5-250 mesh/InchThickness: Min0.05mm

MESH COUNT SIZE

Mesh Aperture(mm) Wire Diameter Effective (%) Weight (Kg/m2)
Mesh 3 6.27 2.2 62 7
Mesh 5 4.36 0.711 76 1.6
Mesh 6 3.52 0.711 63 1.6
Mesh 8 2.5 0.559 67 1.5
Mesh 10 2.08 0.46 67 1.1
Mesh 12 1.74 0.457 68 1.4
Mesh 14 1.36 0.46 57 1.4
Mesh 16 1.21 0.376 55 1.2
Mesh 18 1.1 0.315 60 0.85
Mesh 20 0.95 0.315 58 0.95
Mesh 30 0.67 0.274 55 0.85
Mesh 40 0.44 0.152 46 0.58
Mesh 50 0.36 0.152 50 0.45
Mesh 60 0.3 0.122 50 0.45
Mesh 80 0.198 0.12 44 0.58
Mesh 100 0.154 0.1 37 0.5
Mesh 120 0.13 0.081 40 0.39
Mesh 150 0.097 0.61 32 0.3
Mesh 200 0.086 0.041 46 0.17
