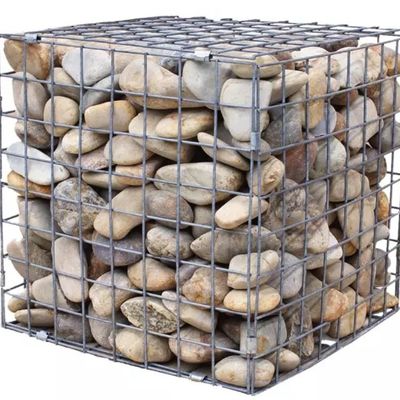

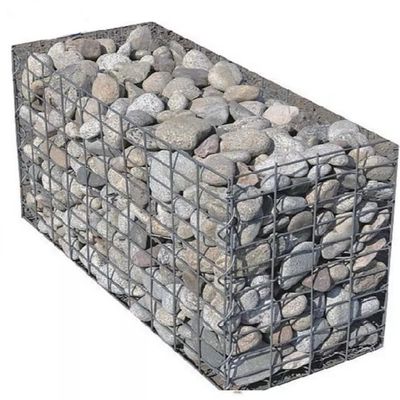

Gabion Cage, 2m x 1m x 1m (75x75mm),hot dipped galvanized welded gabion /welded gabion/gabion wall for stone
Product Details:
| Place of Origin: | China |
| Brand Name: | Jiechang |
| Model Number: | Welded Gabion |
Payment & Shipping Terms:
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P, Western Union, MoneyGram |
|---|
|
Detail Information |
|||
| Material: | Galvanized Wire/low Carbon Wire | Hole Shape: | Square |
|---|---|---|---|
| Application: | Gabions,Cages,slope Protection,Construction Wire Mesh | Type: | Welded Mesh,Hexagonal Wire Mesh,steel Wire Mesh |
| Surface Treatment: | Pvc Coated,hot-dipped,hot Dipped Zink Coated,Hot Dipped Galvanized PVCcoated,Galvanized+PVC Coated | Product Name: | Gabion Box,Coated Galfan Welded Gabion Box Wire Mesh,Welded Fence Mesh,Gabion Basket,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion |
| Usage: | Flood Control Retaining Wall,Island,Protection,garden And So On | Name: | Hot Sale Gabion Baskets Prices / Gabion Box Price / Gabion Baskets Fac,Welded Gabion Mesh,Gabion Wall,Stone Cage Net |
Product Description

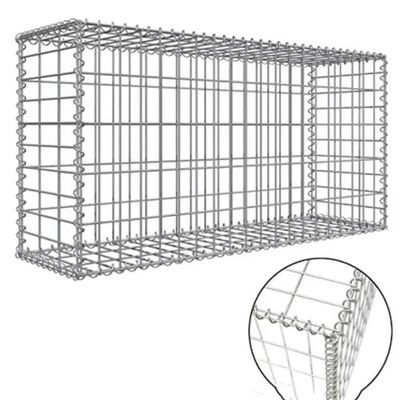

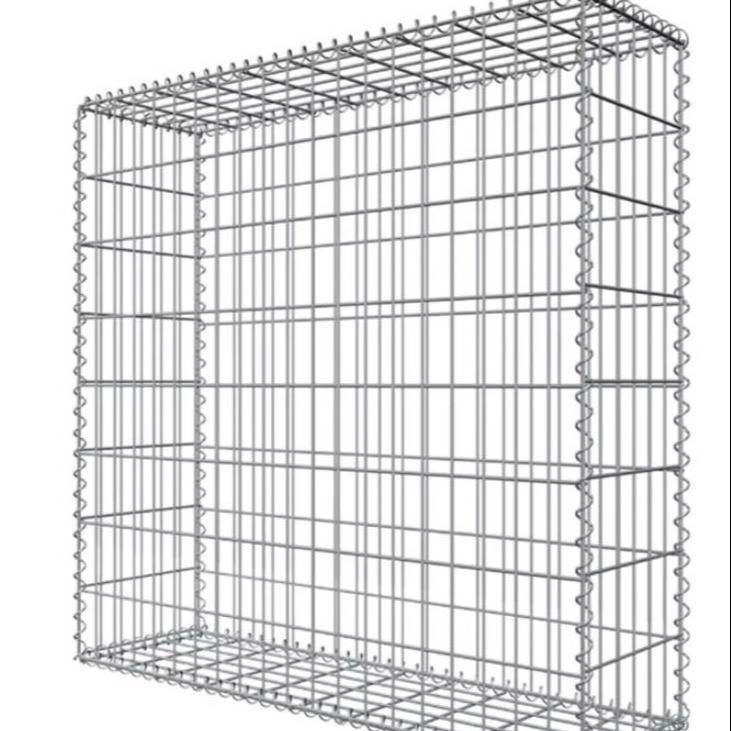

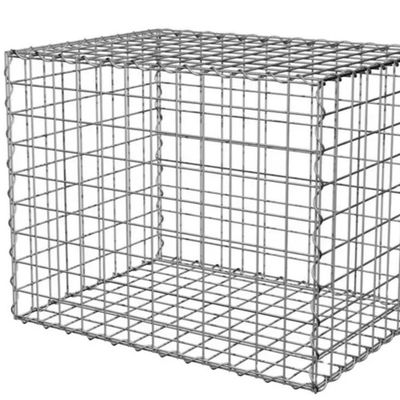

- Gabion Kitsets
- Kitset cages made from 75mm x 75mm x 4mm panels, including all spirals, stiffeners (strengthening wires)
- Material is made from welded mesh Galfan (10% Aluminium, 90% Zinc), with heavy 280 g/m2 coating (coating conforms to BS443/EN10244-2: 2001)
- The wire is manufactured to ASTM 974-97 specification for welded mesh gabions.
- Permathene kitset gabions are supplied in flat packs. Assembly is required
- Gabion basket made from welded mesh Galfan (5% Aluminium, 95% Zinc)
- This basket is in kitset form and includes 6 panels, 12 spirals, 8 stiffeners
- Panel size: 1m x 1m, 75mm x 75mm openings, 4mm Galfan coated wire
- Spiral size: 1m length x 3.4mm Galfan coated wire
- Stiffener size: 450mm x 3.4mm Galfan coated wire
| Model |
Gabion Box Size (Length*Width*Height) |
Wire Diameter (mm) |
Mesh Opening(mm) | Material |
| 01 | 2*1*1 m | 3-7 mm |
50*50 50*100 100*100 |
hot dip galvanized wire Galfan coated wire PVC coated wire |
| 02 | 2*1*0.5 m | |||
| 03 | 1.5*1*1 m | |||
| 04 | 1*1*1 m | |||
| 05 | 1*1*0.5 m | |||
| 06 | 1*0.5*0.5 m | |||
| 07 | 1*0.6*0.3 m | |||
| 08 | 1*0.5*0.3 m | |||
| 09 | 1*0.3*0.3 m |
Material: Low-Carbon Iron Wire,Galvanized Iron Wire
Wire Diameter: 3-6 mm,such as 3.5 mm,4 mm,5 mm,6 mm
Zinc Coated: 200-300 g/m³
Surface Treatment: hot dip galvanzed after welded
Stiffener length: 300 mm
Spiral Binder wire diameter: 3.7 mm etc.
Want to Know more details about this product
