Incoloy 926 Mesh/Screen

Incoloy 926 Mesh/Screen

Incoloy 926 Mesh/Screen

Product Details:

Place of Origin: China
Brand Name: Changgu
Certification: ISO 9001
Model Number: Incoloy 926 Mesh/Screen

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Packaging Details: Seal up, with plastic inside and wooden case or carton outside;
Delivery Time: within 7- 20 days after receiving the advance payment.
Payment Terms: L/C,T/T,Western Union, paypal
Contact Now
Detailed Product Description

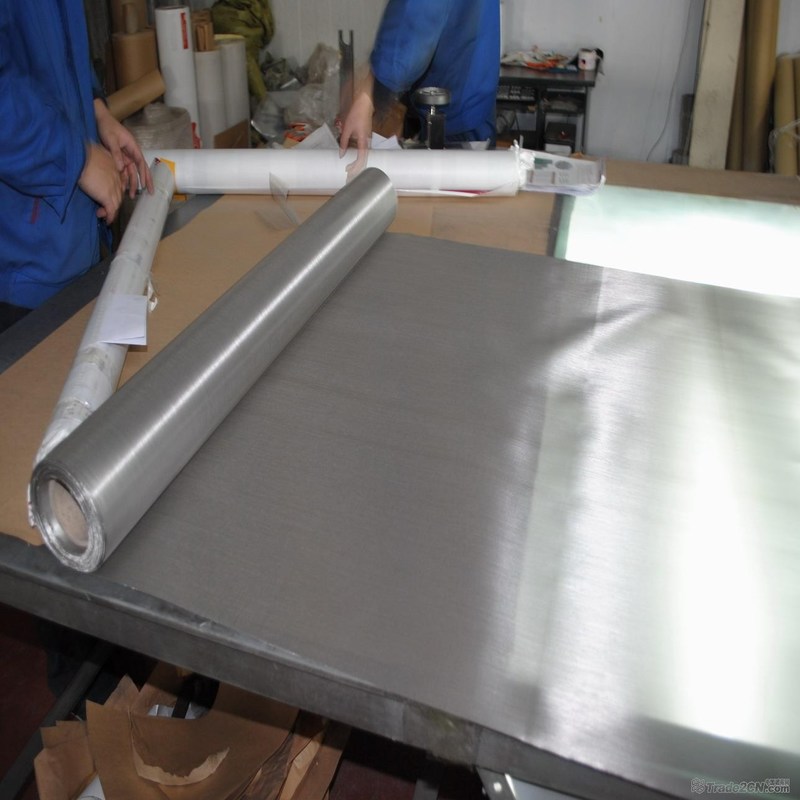

        Incoloy 926 Mesh/Screen

Incoloy 926 Mesh/Screen
 is an austenitic stainless steel alloy has a similar chemical composition with 904L alloy, its nitrogen content is 0.2%, molybdenum content is 6.5%.

Mesh: 0.5-250 mesh/Inch   Thickness: Min0.05mm

Chemical composition of Incoloy 926 Wire Mesh:
Alloy % Ni Cr Fe C Mn Si Cu Mo N Ti P S
926 Min. 24 19 Balance       0.5 6.0 0.15 0.6
Max. 26 21 0.02 2 0.5 1.5 7.0 0.25 1.2 0.03 0.01

Mesh Weaving Method
 of Incoloy 926 Wire Mesh:


Physical properties of Incoloy 926 Wire Mesh:
Density 8.1 g/cm3
Melting point 1320-1390 ℃

Minimum Mechanical properties in the room temperature of Incoloy 926 Wire Mesh:
Alloy state Tensile strength Rm   N/mm2 Yield strength RP0.2        N/mm2 Elongation A5   %
926 650 295 35

Characteristic of Incoloy 926 Wire Mesh:
1.It has high resistance to pitting and crevice corrosion when in Halide and H2S contained acid media.
2.In practice, effective in resistance of chloride stress corrosion cracking.
3.A variety of corrosion have good corrosion resistance capability in the normal oxidation and restore environment.
4.Upgrade mechanical properties than Cronifer 1925 LC-Alloy 904 L.
5. Alloys has Improved the stability of metallurgical compared to a range of 18% of the nickel content alloys.
6.With a certification of applied in manufacturing-related pressure vessel (VdTUV-196~400℃ and ASME )

Application field of Incoloy 926 Wire Mesh:
Alloy 926 is a multipurpose material can be applied in many industrial:
1. Fire system, water purification system, marine engineering and hydraulic piping perfusion system
2. The pipeline, joint, air systems in the acidic gas production
3. Evaporator, the heat exchanger, filter, mixer, etc. in the phosphate production
4.Power plants condensation and pipe system in the use of sewage water to cool water
5. The use of acidic organic catalyst chlorinated derivatives production
6. The production of cellulose pulp bleacher
7. Polished bar in the orrosive oil wells
8. Hose system in the ocean engineering
9. Flue gas desulphurization system components
10. Sulfuric acid condensation and separation system
11. Crystalline salt concentration and the evaporator
12. Transport of corrosive chemicals containers
13. Reverse osmosis desalination plant

Product Description: The product produced by us is of good quality and is priced reasonably.
  Competitive price: The labour cost and cost on procuring the raw materials is low and hence the manufacturing cost is reasonable. We provide high facility in short producing cycle and have strong adaptive capacity in producing variation of products.
        High quality assured: The work done by us has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products. The chemical analysis department, the physical testing department and the quality control department all operate an all-round monitoring of our products from raw materials to final products.

Packing Process & Transportation:
       Packaging: Seal up, with plastic inside and wooden case or carton outside; or according to the customer's requirements.
        Transportation:     By air:   Beijing International Airport    OR        By sea:   Trianjin Seaport

We provide our customers with excellent services. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
